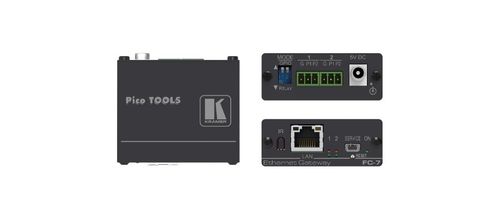

Kramer 2-port multi-IO Relay/GPIO control gateway - FC-7

Kramer 2-port multi-IO Relay/GPIO control gateway - FC-7

Part Number: FC-7
Our Price: $288.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2–Port Multi–Function GPIO/Relay Control Gateway

FC?7 is a compact GPIO/relay multi?function control gateway, capable of plug and play deployment over a customer Ethernet LAN for remote GPI/O and relay control of customer devices. Multiple control clients can be IP?connected to the FC?7 control gateway for concurrent control of devices such as lights, shades and screens.

Key Features
  • Dual–Function I/O Ports - Remote IP–Based control of devices connected to the control gateway dual–function I/O ports, with selectable port configuration to bidirectional GPIO or relay control.
  • Multiple IP Connected Clients - Remotely connected over customer Ethernet network, concurrently controlling any devices connected to control gateway universal I/O ports.
  • Easy & Reliable Installation - With Plug–and–Play IP Installation with dynamic (DHCP) address resolution and auto device discovery over customer LAN. Compact, designed for piggy–back installation, such as behind a TV or display, with the ability to draw power from device USB port and Ethernet connectivity.
  • Remote Management - Built–in web UI for remote browser–based management and support, by multiple IP–clients over customer LAN. Easy firmware upgrades, either remotely via customer LAN, or locally via device USB port.

Specifications

PORTS2 GPIO/relay multi–function ports on 3–pin terminal blocks, each selectable as one of:
- 2 GPI/O ports
- 1 relay port,
1 LAN on an RJ–45 female connector,
1 mini USB connector for local services
MAXIMUM SIMULTANEOUS IP-CLIENT CONNECTIONS40
POWER SOURCE5V DC, 2A
POWER CONSUMPTION5V DC, 370mA
ENCLOSURE TYPEPico Tools, aluminum
COOLINGConvection ventilation
OPERATING TEMPERATURE0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE–40° to +70°C (–40° to 158°F)
HUMIDITY10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES3ft USB cable, bracket set
OPTIONAL ACCESSORIESPower supply unit, RK–3T rack adapter
VIBRATIONISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCECE
ENVIRONMENTAL REGULATORY COMPLIANCEComplies with appropriate requirements of RoHs and WEEE
PRODUCT DIMENSION6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT0.1kg (0.2lbs) approx.
SHIPPING DIMENSION15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT0.3kg (0.6lbs) approx.
