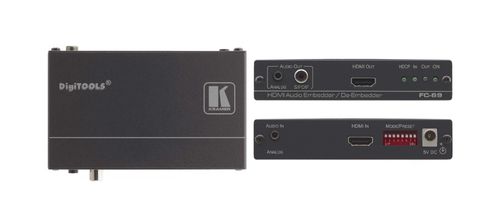

Kramer HDMI Audio Embedder / De-embedder - FC-69

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI Audio Embedder/De–Embedder

FC?69 is a high?performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de?embedder. The unit can embed analog audio to the HDMI output or de?embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

Key Features

Max. Resolution - 4K@60Hz (4:2:0), 4Kx2K.
Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support - ARC, 7.1 PCM, deep color.
Audio Embedding - Even without an HDMI source.
Audio de–Embedding - To unbalanced analog and S/PDIF, selectable from input or ARC.
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Sleep Mode - 5V on the output, following the input, allows the display to turn off when no video is being sent.
Preconfigured Control Options - DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.

Specifications

INPUT	1 HDMI on an HDMI connector, 1 analog stereo audio on a 3.5mm mini jack
OUTPUTS	1 HDMI on an HDMI connector, 1 S/PDIF digital audio on an RCA connector, 1 analog stereo audio on a 3.5 mm mini jack
MAX DATA RATE	8.91Gbps (2.97Gbps per graphic channel), 1080p @60Hz, 36–bit Deep Color, supports 4K@60 UHD (4:2:0), 4Kx2K
AUDIO THD+N	–75dB
COMPLIANCE WITH HDMI STANDARD	Supports HDMI, HDCP
CONTROLS	8–way DIP–switch
INDICATOR LEDS	ON, IN, OUT, HDCP
POWER SOURCE	5V DC, 500mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
RACK MOUNT	With optional adapter
FURNITURE MOUNT	With included rubber feet
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	RoHs and WEEE
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
WARRANTY	7 years parts and labor
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.0lbs) approx.
