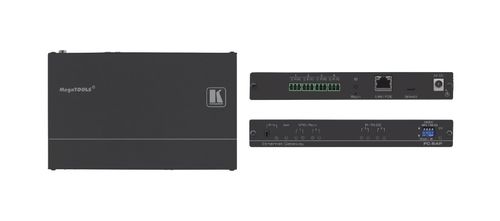

Kramer 4-port PoE multi-IO control gateway - FC-54P

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4–Port Multi–Function Serial/IR & GPIO/Relay PoE Control Gateway

Key Features

2 Serial/IR multi–function ports
2 GPIO/Relay multi–function ports
Up to 40 IP clients
Power over Ethernet
USB–based powering
Built–in management web UI
Supported by: Kramer Control Only
Size - MegaTOOLS® - Mount 2 units side–by–side in a 1U rack space with the optional RK–T2B rack adapter.

Specifications

PORTS	2 RS–232/IR multi–function ports on 3–pin terminal blocks each selectable as either 1 bidirectional RS–232 (RS–485 port 1 selectable option) serial or 2 IR emitter ports, 2 GPIO/Relay multi–function ports on 3–pin terminal blocks each selectable as either 2 GPI/O or 2 relay ports, 1 LAN on an RJ–45 female connector, 1 built–in IR sensor for IR learning, 1 mini USB connector for local services
SUPPORTED SERIAL PORT BAUD RATES	1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION	Transparent up to 115200bps
IR EMITTER CABLE RANGE	80m (260ft)
SUPPORTED IR OUTPUT FREQUENCIES	20kHz to 1.2MHz
SUPPORTED IR INPUT FREQUENCIES	20kHz to 60kHz
MAXIMUM DATA HANDLING OF DEVICE	Up to 150kbps (summed on all ports, see Section ?7.1)
MAXIMUM SIMULTANEOUS IP-CLIENT CONNECTIONS	40
POWER CONSUMPTION	5V DC,350mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
ENCLOSURE TYPE	Mega Tools size, aluminum
COOLING	Convection ventilation
RACK MOUNT	With optional RK–T2B rack adapter
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATOR COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
DIMENSIONS	18.8cm x 11.5cm x 2.5cm (8.5" x 4.7" x 1.0") W, D, H, ½ 19" 1U
WEIGHT	0.4kg (0.9lbs)
SHIPPING DIMENSIONS	34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.0") W. D. H
SHIPPING WEIGHT	0.94kg (2.1lbs)
INCLUDED ACCESSORIES	3ft USB cable, bracket set
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.9lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT	0.9kg (2.1lbs) approx.
