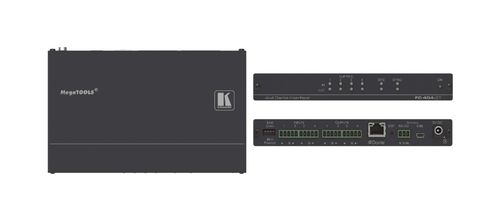

Kramer 4 x 4 Dante Interface - FC-404NET

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4X4 Dante Interface

FC?404Net is a four?input/four?output Dante™ interface with line or microphone level inputs and line level outputs. It connects analog inputs to a digital Dante network or outputs four channels from a Dante network.

Key Features

Dante Network Interface.
Inputs - 4 balanced mono audio on terminal blocks.
Outputs - 4 balanced mono audio on terminal blocks.
Volume Settings - Independent input gain/output volume settings per channel.
Selectable Input Settings - DIP–switch controlled input settings - line level (0db) or mic level (+20dB) with phantom +48 volts.
Versatile Control - Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.

Specifications

INPUTS	4 balanced mono audio on terminal blocks
OUTPUTS	4 balanced mono audio on terminal blocks
PORTS	1 Dante network on RJ–45 connector, 1 RS–232 on a three–pin terminal block, 1 USB mini connector (not used)
INDICATOR LEDS	On, In/Out Clipping, Sys, Sync
CONTROLS	Line/mic+phantom DIP–switches, factory reset button
BALANCED INPUT LEVEL MAX	3.2Vpp @ 0dB in/out gain and 0dB output volume
FREQUENCY RESPONSE	20Hz to 20kHz @1dB
THD+N	<0.008% @1kHz at maximum level
S/N RATIO	>85dB
CROSSTALK	<80dB
INPUT GAIN ADJUSTMENT	–12dB to +60dB
OUTPUT GAIN ADJUSTMENT	+9 dB to - 80dB
INPUT IMPEDANCE	10k? balanced
OUTPUT IMPEDANCE	50? balanced
MIC PHANTOM POWER	+48V DC =/ - 10%
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
POWER CONSUMPTION	5V DC, 850mA max
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–T2B 19" rack adapter
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H 18.80cm x 12.00cm x 2.60cm (7.40" x 4.72" x 1.02" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.9lbs) approx. 0.4kg (0.9lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.0kg (2.1lbs) approx. 1.0kg (2.1lbs) approx.
