Kramer 15?pin HD Installation Cable with EDID 50' - C-GM/XL-50

Kramer C-GM/XL-50 15-pin HD Installation Cable with EDID - 50

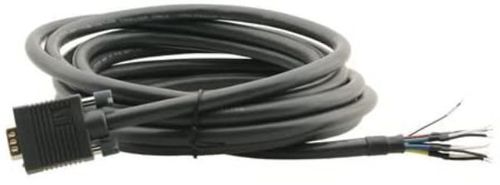

The new XL generation of Kramer CGM cables offers the highest possible performance and a new configuration designed to give installers and users a new level of convenience and aesthetics. They are ideal for any application requiring nocompromise quality and performance in a VGA cable.Quality Construction - Molded male 15pin HD connector installed on one end, and the corresponding RGBHV coaxes exposed, prestripped and tinned at the other end. Includes two additional wires to connect pins 12 and 15 for EDID support.

• Easy Installation - Prestripped and tinned conductors at the bare end provide the easiest possible installation of a 15pin HD connector, or to the rear of a Kramer wall plate with terminal blocks. For typical 5 BNC installation, just cut and prepare the coaxes as usual for crimp or compression connectors on 26/28 gauge mini coax.
• Cable Specs - See Kramer BC5X26 for detailed cable specs.
• Varied Selection of Lengths - Available in versions of 4.6 to 22.9m (15, 25, 35, 50 and 75ft).

• Product Data Sheet
