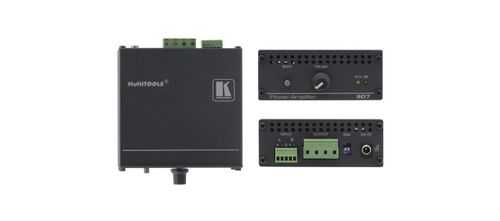

Kramer 40 Watt RMS Power Amplifier - 907

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Stereo Power Amplifier (40 Watts per Channel)

The 907 is a high?performance power amplifier for line?level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and delivers 40 watts per channel into an 8? load.

Key Features

High Efficiency - Class D operation.
Controls - Volume control knob & mute button.
Gain Control DIP–Switch.
Mute and On Indicator LEDs.
Compact MultiTOOLS® - Up to 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 universal rack adapter.

Specifications

INPUT	1 balanced stereo audio on a terminal block connector
OUTPUT	1 balanced stereo audio (speakers) on a terminal block connector
OUTPUT POWER	40 watts per channel into 8?
OUTPUT MUSIC POWER	150W per channel into 8?
INPUT SENSITIVITY	1.2Vrms
AMPLIFIER TYPE	Class D
VOLTAGE GAIN	20dB (x10)
BANDWIDTH (-3DB)	20kHz
S/N RATIO	60.2dB
COUPLING	DC
AUDIO THD + NOISE	1.9%
AUDIO 2ND HARMONIC	0.3%
POWER CONSUMPTION	24V DC, 5A
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK-1 19" rack adapter
PRODUCT DIMENSION	10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.3kg (0.7lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.3kg (2.8lbs) approx.
