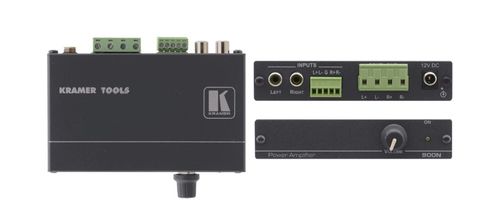

Kramer 8.4 Watt RMS Power Amplifier - 900N

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Stereo Power Amplifier (10 Watts per Channel)

The 900N is a high?performance power amplifier for balanced or unbalanced stereo audio signals. Either input can deliver a speaker output of 10 watts RMS power per channel into a 4? load.

Key Features

High Efficiency - Class D operation.
S/N Ratio - 55dB.
Controls - Volume knob, On LED.
Special Note - Before turning on the 900N, make sure the volume is turned down to the minimum.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	1 unbalanced stereo audio on RCA connectors 1 balanced stereo audio on a 5–pin terminal block connector
OUTPUT	1 stereo loudspeaker output on a 4–pin terminal block connector
OUTPUT POWER	10W RMS per channel into a 4? load
OUTPUT MUSIC POWER	35W RMS per channel into a 4? load
BANDWIDTH (-3DB)	24kHz
S/N RATIO	55dB
CONTROLS	Gain: - 40dB to +19dB until the compression threshold
COUPLING	Input: AC speakers out: DC
AUDIO THD + NOISE	0.5% @1kHz
AUDIO 2ND HARMONIC	0.04% @1kHz
POWER CONSUMPTION	12V DC, 2.1A
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
