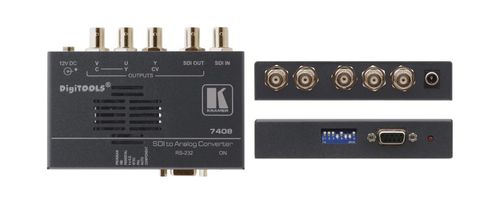

Kramer SDI to Multi-Format Analog Video Format Converter & Processo - 7408

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

SDI to Multi–Format Analog Video Format Converter & Processor

The 7408 is a format converter for SDI (SMPTE 259M) signals. It converts an SDI video signal to composite video and s-Video (Y/C), or component (YUV) video.

Key Features

Bandwidth - 5.7MHz (–3dB).
Multi–Standard - PAL (B/D/G/H/I/N) & NTSC (3.58/4.43).
NTSC Decoding Options - With or without 7.5IRE setup (pedestal).
ProcAmp Control - Brightness, contrast color (saturation), sharpness, and hue (NTSC only) via RS–232.
Non–Volatile Memory.
Control - Front panel and RS–232 (Windows®–based software is included).
Resolution - 10–bit.
Looping Input - Reclocked and equalized.
Compact DigiTOOLS® - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 SDI on a BNC connector
OUTPUTS	1 SDI reclocked on a BNC connector 1 composite video, 1Vpp/75? on a BNC connector 1 s–Video, 1Vpp, 0.3Vpp/75? on two BNC connectors 1 component video (Y, U and V) on BNC connectors
BANDWIDTH (-3DB)	5.7MHz
DIFF. GAIN	<1%
DIFF. PHASE	<1Deg
K-FACTOR	0.5%
S/N RATIO	>70dB (flat field)
DIGITAL RESOLUTION	10 bit
LUMA NON-LINEARITY	0.9%
CHROMA/LUMA DELAY	<15nsec
POWER CONSUMPTION	12V DC, 320mA
INCLUDED ACCESSORIES	Power supply, null–modem adapter
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.4lbs) approx.
PRODUCT WEIGHT	0.3kg (0.6lbs) approx.
