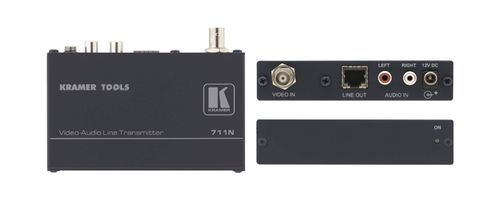

Kramer Composite Video & Stereo Audio over Twisted Pair Transmitter - 711N

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Composite Video & Stereo Audio over Twisted Pair Transmitter

The 711N is a twisted pair transmitter for composite video and unbalanced stereo audio signals. The 711N transmitter converts composite video and stereo audio to a twisted pair signal and the 712N receiver converts the twisted pair signal back into composite video and stereo audio signals.

Key Features

Bandwidth - 85MHz - 3dB.
Twisted Pair Input/Outputs - RJ–45 connectors.
Looping Input - 712N (RJ–45).
Selectable Input Signal Termination - 712N.
Level (Gain) and EQ (Peaking) Controls - 712N.
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
System Range - Up to 400m (1200ft).
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.

Specifications

INPUT	1 composite video 1Vpp/75?, on a BNC connector 1 stereo unbalanced audio 4dBu/50k?, on two RCA connectors
OUTPUT	1 RJ–45 CAT 5 shielded connector (LINE OUT)
VIDEO MAX. SIGNAL LEVEL	2.8Vpp
AUDIO MAX. SIGNAL LEVEL	7.6Vpp
VIDEO BANDWIDTH (-3DB)	85MHz
AUDIO BANDWIDTH (-3DB)	>100kHz
DIFF. GAIN	0.04%
DIFF. PHASE	0.25Deg
K-FACTOR	0.1%
VIDEO S/N RATIO	75dB
AUDIO S/N RATIO	77dB
AUDIO CROSSTALK (ALL HOSTILE)	–53dB @5MHz, video into audio
VIDEO COUPLING	DC
AUDIO COUPLING	Input: AC line output: DC
AUDIO THD + NOISE	0.026%, 1kHz
AUDIO 2ND HARMONIC	0.001% @1kHz
POWER CONSUMPTION	12V DC 50mA, when 712N is fed by an independent 12V supply 135mA when feeding 712N
INCLUDED ACCESSORIES	Power supply, mounting bracket (each)
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
