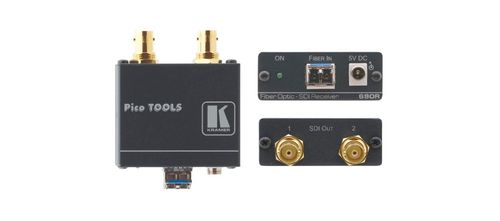

Kramer 3G HD-SDI Fiber Optic Receiver - 690R

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2x3G SDI Receiver over Ultra–Reach SM Fiber

The 690R is a high?performance fiber optic receiver for SDI video signals up to 3G HD?SDI. The 690T converts two 3G HD?SDI signals to single?mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS?88FO.

Key Features

Max. Data Rate - 3Gbps.
Inputs - 2 single–mode fiber optic on LC connectors.
Outputs - 2 SDI on BNC connectors.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
Laser Standards Compliance - IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
System Range - Up to 10km (6.2mi).

Specifications

INPUTS	Dual single–mode fiber (9/125) over LC connectors
OUTPUTS	2 SD/HD/3G HD–SDI on BNC connectors
BANDWIDTH	Supports up to 3Gbps bandwidth for each input
FIBER OPTIC EXTENSION	Up to 10km (>6.2 miles) for 3G–SDI
INPUT CABLE EQUALIZATION	200m for SDI, 100m for 3G–SDI
POWER CONSUMPTION	5V DC, 350mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–4PT 19" rack adapter
PRODUCT DIMENSION	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.2lbs) approx.
SHIPPING DIMENSION	23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
