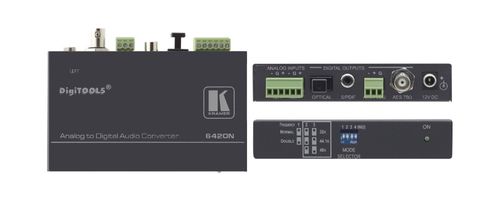

Kramer Balanced Stereo Audio to Digital Audio Format Converter - 6420N

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Balanced Stereo Audio to Digital Audio Format Converter

The 6420N is a high-performance format converter for balanced audio signals. The unit converts two channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and TOSLINK® optical digital outputs simultaneously.

Key Features

Standards - AES/EBU, AES–3id, S/PDIF, TOSLINK® optical.
Sampling - 32, 44.1, 48, & 96kHz (selectable).
Professional or Consumer Bit Rate Selection.
Left & Right Gain Conversion Control - 0dB, - 12dB, - 16dB, - 20dB or - 24dB.
Compact DigiTOOLS® - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	1 balanced stereo audio line in (10k) on detachable terminal blocks
OUTPUTS	4 digital audio outputs: AES 75? AES/EBU S/PDIF TosLink Optical
SAMPLE RATE CONVERSION	32kHz, 44.1kHz, 48kHz, 96kHz
MAX. INPUT GAIN	–12dB: 3.1Vrms - 24dB: 11.5Vrms
CONVERSION GAIN	–12dB, - 16dB, - 20dB,–24dB
THD+N	Better than - 92dB
IDLE CHANNEL NOISE	Better than 99dBFS CCIR–RMS
SIGNAL-TO NOISE RATIO	Better than 98dBFS CCIR–RMS
CONTROLS	4 sample rate selector switches, system bit selector switch, 8 gain switches, ON LED
COUPLING	AC
POWER CONSUMPTION	12V DC/1.25A, 150mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONAL	19" rack adapters
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.3lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
