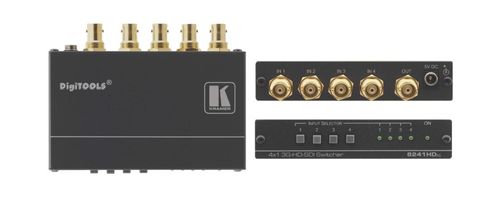

Kramer 4x1 3G HD?SDI Switcher - 6241HDXL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4x1 3G HD–SDI Switcher

The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.

Key Features

Max. Data Rate - 3Gbps.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.

Specifications

INPUTS	4 SMPTE 259M/344M serial digital video inputs (75?) on BNC connectors
OUTPUTS	1 SMPTE 259M/344M serial digital video output (75?) on BNC connectors
MAX. DATA RATE	2.97Gbps
MAX. OUTPUT LEVEL	800mVpp/75?
EQUALIZATION	Automatic equalization for losses on 75? coaxial cable
POWER CONSUMPTION	5V DC, 410mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK�3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.5lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.2lbs) approx.
