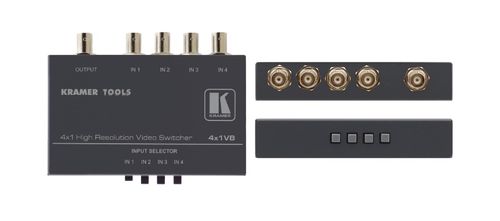

Kramer 4x1 Composite Video Mechanical Switcher - 4X1VB

Kramer 4x1 Composite Video Mechanical Switcher - 4X1VB

Write a Review
Part Number: 4X1VB
Our Price: $180.00
Availability: Usually ships the same business day
-
+
Bookmark
Share This
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4x1 Composite Video Mechanical Switcher

The 4x1VB is a high?performance switcher for composite video signals. It switches any one of four signals to a single output.

Key Features
  • High Bandwidth - 400MHz (–3dB).
  • Video on BNC Connectors.
  • Mechanical (Passive) Switching - No power required.

Specifications

INPUT4 video, 1Vpp/75? on BNC connectors
OUTPUT1 composite or single component video, 1Vpp/75? on a BNC connector
BANDWIDTH (-3DB)400MHz
SWITCHING SYSTEMMechanical, break–before–make
INCLUDED ACCESSORIESMounting bracket
OPTIONSRK–3T 19" rack adapter
PRODUCT DIMENSION12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT0.2kg (0.4lbs) approx.
SHIPPING DIMENSION23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT0.4kg (1.0lbs) approx.
