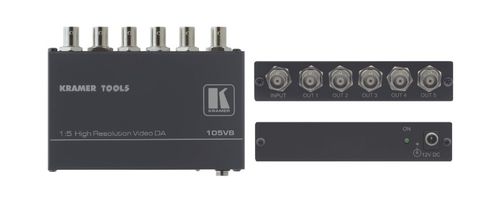

Kramer 1:5 Composite Video Distribution Amplifier - 105VB

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:5 Composite Video Distribution Amplifier

The 105VB is a high-performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.

Key Features

Bandwidth - 400MHz (–3dB).
Connectors - BNC (105V has RCA).
Level (Gain) Control.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 composite video, 1Vpp/75? on a BNC connector
OUTPUTS	5 composite video, 1Vpp/75? on BNC connectors
MAX. VIDEO OUTPUT	2Vpp
VIDEO BANDWIDTH (-3DB)	400MHz
DIFF. GAIN	0.1%
DIFF. PHASE	0.1Deg
K-FACTOR	<0.05%
S/N RATIO	80dB
CONTROL	Up to +6dB
COUPLING	AC
POWER CONSUMPTION	12V DC, 100mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.5lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.7kg (1.5lbs) approx.
