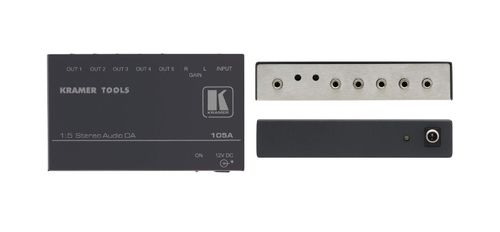

Kramer 1:5 Stereo Audio Distribution Amplifier - 105A

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:5 Stereo Audio Distribution Amplifier

The 105A is a high-performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.

Key Features

Level (Gain) Controls.
S/N Ratio - 80dB (unweighted).
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 unbalanced stereo/balanced mono, 1Vpp/33k? on a 3.5mm mini jack
OUTPUTS	5 unbalanced stereo/balanced mono, 1Vpp/50? on 3.5mm mini jacks
MAX. OUTPUT	5Vpp
AUDIO BANDWIDTH (-3DB)	20kHz
S/N RATIO	80dB unweighted
CONTROL	Left and right gain rear trimmers (0 to +3.5dB)
COUPLING	AC
AUDIO THD + NOISE	0.03% (2nd harmonic)
POWER CONSUMPTION	12V DC, 100mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.1kg (0.3lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
