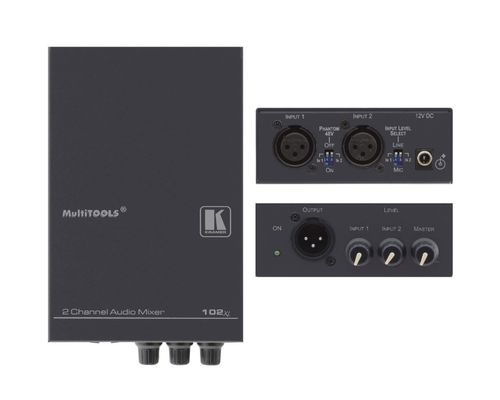

Kramer 2 Channel Balanced Audio Mixer - 102XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2–Channel Balanced Mono Audio Mixer

The 102xl is a high?performance 2?channel mono audio mixer for balanced line level and mic level mono audio signals. The unit mixes two mono inputs and produces a mixed audio output signal.

Key Features

S/N Ratio - 91.5dB (line level), 62.5dB (mic level).
Line or Mic Level - Input selectable.
Phantom Power - 48V DC (input selectable).
Level (Gain) Control - Input 1, input 2, and master.
Compact MultiTOOLS® - 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 universal rack adapter.

Specifications

INPUTS	2 line/mic balanced mono on XLR (F) connectors
OUTPUT	1 line balanced mono on an XLR (M) connector
MAX. OUTPUT LEVEL	18Vpp
BANDWIDTH (-3DB)	>100kHz
S/N RATIO	Line: 91.5dB Mic: 62.5dB, 1kHz
CONTROLS	Line: <–48dB to +11.4dB, Mic: <–1.9dB to +62.5dB, minimum to absolute gain. Phantom +48V selection for condenser microphone by 90° DIP–switches Line/microphone input mode selection by 90° DIP–switches
COUPLING	Input: AC, Output: DC
AUDIO THD + NOISE	Line: 0.013%, mic: 0.079%
AUDIO 2ND HARMONIC	Line: 0.002%, mic: 0.01%
POWER CONSUMPTION	12V DC, 140mA (DC)
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.3kg (0.7lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	0.7kg (1.5lbs) approx.
