Part Number: KD-X40MRx
Our Price: $280.00
Availability: Usually ships the same business day
-
+

Description

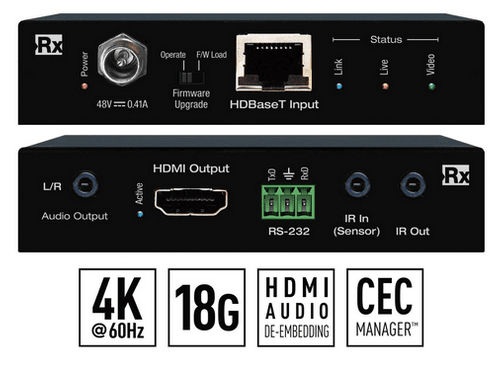

KD-X40MRx is a 4K/UHD, HDCP2.2 compliant HDBaseT receiver with 18Gbps bandwidth for extension of digital video signals with the latest standards in resolution, HDR, and Chroma. KD-X40MRx is sold a la carte to natively integrate with Key Digital HDBaseT wall-plate transmitters, KD-X2x1WDTx or KD-X2x1WVTx. KD-X40MRx provides power to the wall plate transmitter, and de-embed the incoming audio signal for ease of integrating the selected wall plate source with audio systems. In addition to AV signals, KD-X40MRx extends IR and RS-232 for controlling remotely located equipment.

    Features
  • Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
  • Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately)
  • Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
  • Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
  • CEC Manager™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Low Profile: Super slim chassis design


    Additional Features
  • HDR: More life-like images through a greater range of luminance levels
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
  • Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
  • RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
