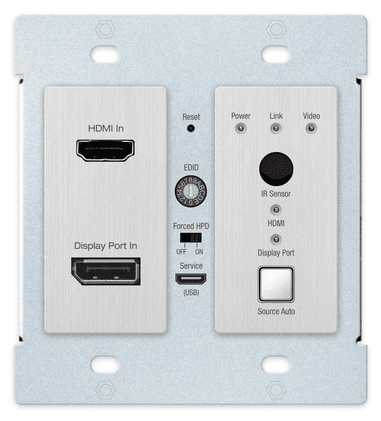

Key Digital HDMI Display Port over 40m CAT6 HDBaseT Wall Plate Transmitter - KD-X2X1WDTx

Key Digital® KD-2x1WDTx is an HDBaseT wall-plate transmitters + presentation switcher with one HDMI and one Display Port input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more. KD-X2x1WDTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. In addition to AV signals, KD-X2x1WDTx extends IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.

Additional Features
• Presentation Switching: 1 HDMI and 1 Display Port / VGA with Analog Audio source selected by push button
• Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
• Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
• Unit Control: via USB for initial installation steps
• Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

Additional Features
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR: More life-like images through a greater range of luminance levels
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
