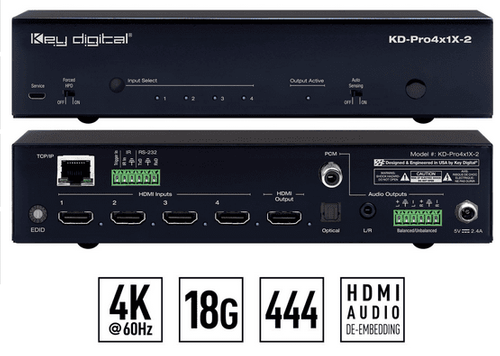

Key Digital 4 Input Pro Series HDMI Auto Switcher with Web UI - KD-Pro4x1X-2

Key Digital® KD-Pro4x1X-2 is a 4K/18G HDMI switcher with analog and digital audio de-embedding, auto switching, web UI and iOS app-ready control. Designed for professional audio video installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, KD-Pro4x1X-2 enables multiple video sources to connect to a single video display while analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. KD-Pro4x1X-2 supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-Pro4x1X-2 can also be controlled via trigger voltage and boasts a programming-free presentation system capability when integrated with KD-Amp220 and/or KD-CamUSB and controlled via Web UI or free Key Digital iOS app.

Features
• HDMI Switching: 4 HDMI sources to 1 HDMI output/display
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Audio De-embedding®: Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors
• Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
• Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
• Programming-Free Presentation System: Add KD-Amp220 and/or KD-CamUSB as desired and setup in KDMS Pro for a complete user interface in the web UI and KD iOS App including AV switching, volume control with microphone mix, and PTZ web cam control for an all-in-one user-friendly system.
• Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable with web UI and KD-App ready

Additional Features
• HDMI Switching: 4 HDMI sources to 1 HDMI output/display
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Audio De-embedding®: Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors
• Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
• Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
• Programming-Free Presentation System: Add KD-Amp220 and/or KD-CamUSB as desired and setup in KDMS Pro for a complete user interface in the web UI and KD iOS App including AV switching, volume control with microphone mix, and PTZ web cam control for an all-in-one user-friendly system.
• Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable with web UI and KD-App ready
