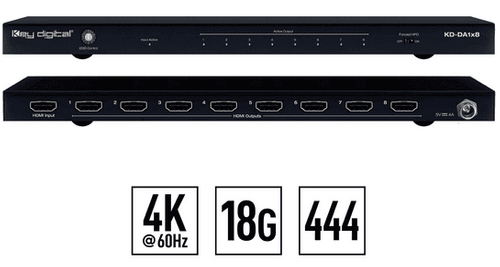

Key Digital 8 Output HDMI Splitter Distribution Amp - KD-DA1x8

KD-DA1x8 HDMI Distribution Amplifier is designed and engineered to offer the best in quality, performance, and reliability, while providing a cost-effective, ultra-slim HDMI distribution solution. The KD-DA1x8 provides one input to multiple output HDMI distribution without signal degradation. KD-DA1x8 HDMI Distribution Amp supports all SD, HD, VESA and Ultra HD/4K video standards, including 4K, 1080p/60, 1920x1200 and support of HDCP 2.2 and HDR10.

Features
• HDMI Signal Distribution: 1 HDMI Source to 8 HDMI Displays
• Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
• 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
• Resolution Support: SD, HD, and VESA up to UHD/4K
• Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™ and Dolby® Atmos
• HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI

Additional Features
• HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
• HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
• 3D Ready: Capability to pass 3D stereoscopic signal formats
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
• Full Buffer™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
• Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
• I2C Communication: EDID and HDCP buffering from Display to Source
• CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
