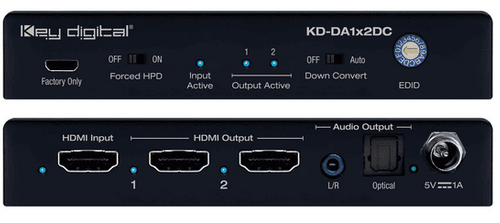

Key Digital 2 Output HDMI Splitter Distribution Amp - KD-DA1X2DC

KD-DA1x2DC is an HDMI splitter/distribution amplifier with 4K 18G resolution signal support and a 4K to 1080p resolution down conversion option. This enables a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support. The KD-DA1x2DC stands out for its professional integration tools and versatile audio de-embed ports. It also features intelligent EDID management. These features make it a reliable and cost-effective choice for a wide range of professional installations.

The KD-DA1x2DC is engineered to deliver superior quality, performance, and reliability, all at an affordable price. We specifically designed it for easy integration into professional audio-video installations. It's suitable for everything from digital signage to surveillance monitoring applications and beyond.

The KD-DA1x2DC HDMI audio splitter includes L/R analog and optical digital audio de-embed ports. This allows for integration with amplifiers, distributed audio systems, or sound bars. A flexible and comprehensive audio solution for any setup!

The KD-DA1x2DC supports up to 4K/UHD video resolutions with 4:4:4 chroma sub-sampling, 12-bit deep color, and HDR support.

To address common HDMI handshaking and integration challenges, the KD-DA1x2DC features EDID handshaking and Forced Hot Plug Detection professional tools for a smooth and hassle-free integration experience.

Features
• HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays
• Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display
• Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
• Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®

Additional Features
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• CEC Disconnect: Prevents unwanted control of source
