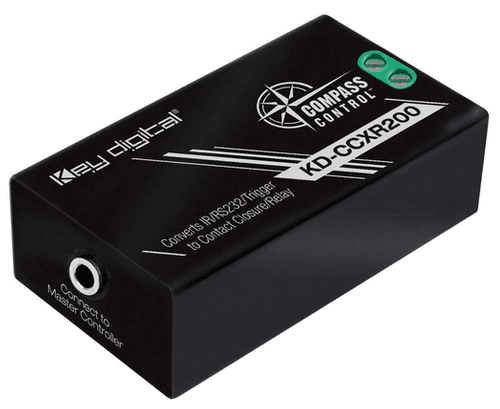

Key Digital Multi-Function Port to Contact Closure Converter - KD-CCXR200

KD-CCXR200 is used in Compass Control® Pro systems to control devices via contact closure.

Features
• Converts: Any I/O Multifunction Compass® Control Port (MPC35™) to Contact Closure/Relay when set to 12V Output Voltage Trigger Mode
• Contact Functionality: Contact is Normally Open. When 12V is received, the Contact is Closed.
• 3.5mm mono input connection: Use a male-to-male 3.5mm mono cable from KD-MC1000, KD-MC2500 and Digital IQ Series™ Matrix Switchers
• One Contact Closure Output
• 3 pin Relay: Use two KD-CCXR200 units and two KD-MC1000 I/O ports to create a 3pin relay.
• Contact Closure Maximum Rating: 250V/2A -Maximum
• Distances: 3.5mm mono cable 10 feet, Contact Closure/Relay Output with one twisted pair of CAT5e/6 cable 100 feet
• Power: No external power required
