JBL VMA160 , - NVMA160-0-US

JBL VMA160 , - NVMA160-0-US

Part Number: NVMA160-0-US
Our Price: $510.89
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

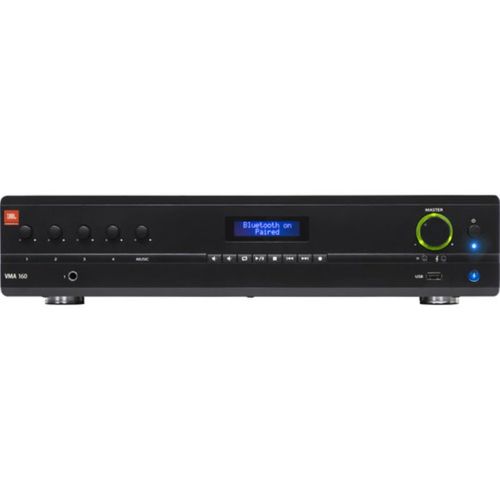

JBL NVMA160-0-US Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier

The JBL VMA160 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 60W of output power. It can be installed in a standard 19 equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.

Key Features
  • Suitable for commercial and industrial use
  • Euroblock, RCA, and 1/4? TRS input connectors
  • Independent bass and treble controls for each output channel
  • Voice-activated ducking during announcements
  • Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
  • Priority muting using PTT switch closure
  • Configurable output routing
  • Media player capable of playing MP3 files from a Bluetooth device or USB drive
  • Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems

Specifications

Max Output Power per Channelinto 4 ? or 8 ?; 1kHz, ? 0.5% THD - VMA160: 60W VMA1120: 120W VMA1240: 240W
Insertion Loss(70V & 100V outputs) 1dB maximum
Number of Inputs5
Number of Outputs1
Tone ControlsBass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input SensitivityMic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response4/8 ? Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD)Power Amp Output: <0.5%, 20Hz - 20kHz
Phantom Power27VDC
