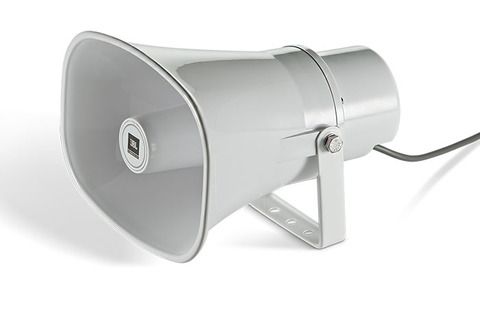

JBL Paging Horn - CSS-H15

JBL Paging Horn - CSS-H15

Part Number: CSS-H15
Our Price: $118.32
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

CSS-H15

The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.

Applications:
  • Public Access Areas
  • Warehouses
  • Factories
  • Schools
  • Recreational Facilities
  • Commercial Buildings
  • Distribution Centers
  • Civic Centers
  • Other Commercial Sound and Protective Signaling Systems
Features
  • Excellent voice range clarity for announcement and paging.
  • High sensitivity delivers high sound levels with minimal power amplification.
  • Wide 70 horizontal by 90 vertical coverage for medium throw applications.
  • Phenolic diaphragm driver for outdoor durability and high reliability.
  • UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
  • Built-in high-pass filter enhances reliability by protecting against low frequency damage.
  • Highly weather-resistant, with stainless steel bracket and hardware.

Specifications

Frequency Range (-10dB)400 Hz - 7.5 kHz
Coverage Pattern70 degrees horizontal by 90 degrees vertical
Included High-Pass FilterPassive 350 Hz High-pass filter built-in to protect against damage from frequencies below operational range
Directivity Factor10.9 (2 kHz)
Directivity Index10.4 (2 kHz)
System Power Rating15W (60W peak), 100 hours
Sensitivity (1W, 2.83V @ 1m)105 dB, ave. 1 kHz - 6 kHz; 111 dB at 2 kHz
Max. SPL117 dB cont ave. (123 dB peak), 1 kHz - 6 kHz; 123 dB cont ave. (129 dB peak), 2 kHz, 15W input, 8 ohm setting
Nominal Impedance15W/70V, NC/100V tap: 333 ohms; 7.5W/70V, 15W/100V tap: 667 ohms; 3.8W/70V, 7.5W/100V tap: 1333 ohms; 1.9W/70V, 3.8W/100V tap: 2666 ohms; 0.9W/70V, 1.9W/100V tap: 5332 ohms; 8 ohms at 8 ohm direct setting
Transformer Taps70V: 15W, 7.5W, 3.8W, 1.9W, 0.9W; 100V: 15W, 7.5W, 3.8W, 1.9W
Full-Range Driver33 mm (1.3") diameter with phenolic diaphragm
Horn MaterialABS
Mounting HardwareStainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) diameter mounting holes, stainless steel exterior hardware
ColorRAL 9016 (horn and bracket)
Input Connection300 mm (12") pigtail to bare wire; entrance via watertight fitting; wire colors: red = positive (+), black = negative (-)
EnvironmentalIP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware
Safety Agency CertificationsTransformer UL registered per UL1876 "Isolating signal and feedback transformers for use in electronic equipment"
Dimensions (H x W x D)163 x 222 x 232 mm (6.5 x 8.8 x 9.2") horn; 181 x 222 x 232 mm (7.1 x 8.8 x 9.2") including mounting bracket; Depth excludes cable exit
Weight3.0 lbs (1.4 kgs)
Shipping Weight3.7 lbs (1.7 kgs)
Included AccessoriesStainless steel mounting bracket
