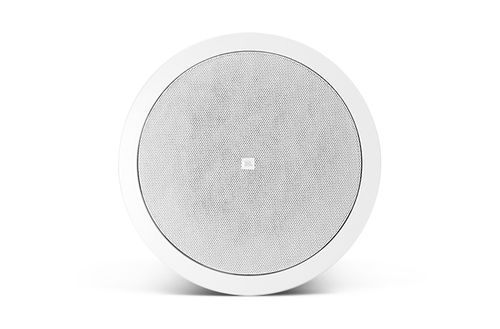

JBL Ceiling Loudspeaker Assembly for Life Safety Applications (pair) - C26CT-LS

JBL Ceiling Loudspeaker Assembly for Life Safety Applications (pair) - C26CT-LS

Part Number: C26CT-LS
Our Price: $426.00
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

Features
  • UL1480 UUMW Listed for use in Fire Alarm and/or Emergency Communication Systems.
  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

Specifications

Frequency Range80 Hz - 20 kHz
Power Capacity150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, & 15W
Nominal Coverage Angle110° conical coverage
Directivity Index (DI)4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL107 dB @ 1 m (3.3 ft)
Low-Frequency165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency19 mm (¾ in) Titanium coated polyester
TerminationRemovable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
Outside Dimensions (H x Dia)210 x 252 mm (8.3 x 9.9 in)
190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (ea)4.2 kg (10 lb)
Shipping Weight (pair)9.7 kg (21 lb)
