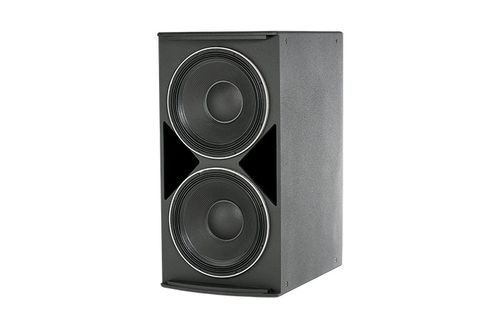

JBL Ultra Long Excursion High Power Dual 18" Subwoofer - ASB7128
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Ultra Long Excursion High Power Dual 18" Subwoofer
The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Features- 2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
- 4000 watts continuous pink noise, 16000 watts peak power handling capacity
- Ultra Long Excursion
- Large vent area for high output with low distortion
- Parallel/Discrete switchable input mode
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Specifications
Frequency Range (-10 dB) | 20 Hz - 1 kHz |
Frequency Response (± 3 dB) | 25 Hz - 1 kHz |
Transducer Power Rating | 4000 W (16000 W peak), 2 hrs. |
Input Modes | Drivers Parallel / Drivers Discrete |
Long-Term System Power Rating | 2400 W (9600 W peak), 100 hrs. |
Maximum SPL (1m) | 25 Hz - 200 Hz: 135 dB-SPL cont avg. (141 dB peak) |
System Sensitivity | 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m |
Nominal Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode |
Low Frequency Driver | 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers |
Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware |
Finish | Black DuraFlex™ finish. White available upon request. |
Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. |
Input Connector | NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
Environmental Specifications | Mil-Std 810; IP-x3 per IEC529. |
Dimensions (H x W x D in vertical cabinet orientation) | 1092 x 560 x 815 mm (43.0 x 22.0 x 32.1 in) |
Net Weight | 71.9 kg (158.5 lb) |
Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers. |
