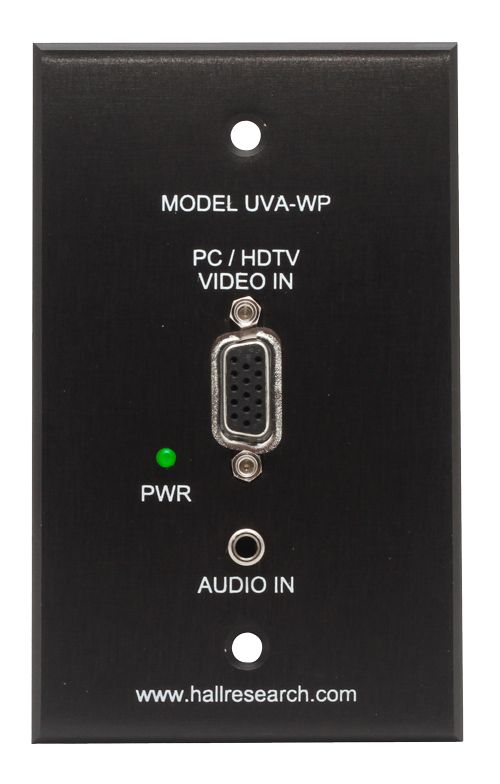

Hall Research VGA + Audio Metal Wall Plate (Sender) - UVA-WP

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video and Audio over UTP transmitter

The UVA-WP Mini-Cat® is a single port Video and Audio over UTP (Cat5/5e/6) transmitter. The UVA-WP Mini-Cat® can transmit the Video and Audio up to 1,000 feet. The UVA-WP Mini-Cat® supports resolutions up to 1920x1440 at 60Hz.

Key Features

Drive standard Cat5 cables to 1,000 feet for VGA or Component Video
Transmit video and audio on one cable
Handles resolutions up to 1920x1440 at any refresh rate or 1080p (HD YPbPr)
Mounts into a single-gang wall mounted box
Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
Amplifies the signal for clean and crisp transmission
Differential signaling eliminates ground loops and noise

Specifications

Dimensions:	Single-gang wall mount
Weight:	1 lbs. (shipping)
Power Supply:	From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 6V DC Center-Positive
Max Distance:	1000 Ft (304.8 Meters)
Resolution:	Up to 1920 x 1440 non-interlaced at up to 85 hz or YPbPr up to 1080p
Video types:	RGBS, RGsB (sync on green), RGB or YpbPr. Can also transmit Composite Video (CV), S-Video(Y/C) with the appropriate adapter cable.
Bandwidth:	Video: DC to 250 Mhz
Audio:	20 to 10 KHz
Video Level:	0.7 volts peak to peak
Maximum Altitude:	10000 Ft (3048 Meters)
Temperature:	Operating: 32 to 122°F (0 to 50°C)
Storage:	–40 to +185°F (–40 to +85°C)
Size and Weight:	2.75" W X 4.5" D X 1" H - 0.5 Lb
