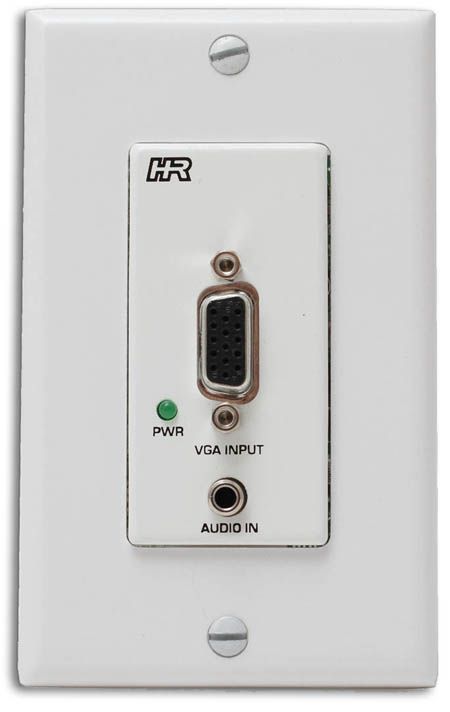

Hall Research VGA + Audio Metal Decora Plate (Sender) - UVA-DP

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video and Audio Over UTP Decora Plate Sender

The UVA-DP Mini-Cat® is a single port Video and Audio over UTP (Cat5/5e/6) Decora Plate transmitter. The UVA-DP can transmit Video and Audio up to 1,000 feet. It supports resolutions up to 1920x1440 at 60Hz.

Key Features

Send VGA or Component Video and audio up to 1,000 ft over a single Cat 5 cable
Supports 1080p and any resolution up to 1920x1440 at 85Hz
Single-gang Decora plate form factor
Amplifies the signal for clean and crisp transmission
Differential signaling eliminates ground loops and noise

Specifications

Dimensions:	Single gang Decora plate
Weight:	1 lbs. (shipping)
Power Supply:	From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 6V DC Center-Positive
Max Distance:	1000 Ft (304.8 Meters)
Max Resolution:	1920 x 1440 non-interlaced up to 85 Hz or YPbPr up to 1080p
Video Types:	RGBS, RGsB (sync on green), RGB or YpbPr. Can also transmit Composite Video (CV), S-Video(Y/C) with the appropriate adapter cable
Bandwidth:	Video: DC to 250 Mhz Audio: 20 to 10 KHz
Video Level:	0.7 volts peak to peak
Maximum Altitude:	10000 Ft (3048 Meters)
Temperature:	Operating: 32 to 122°F (0 to 50°C) Storage: –40 to +185°F (–40 to +85°C)
