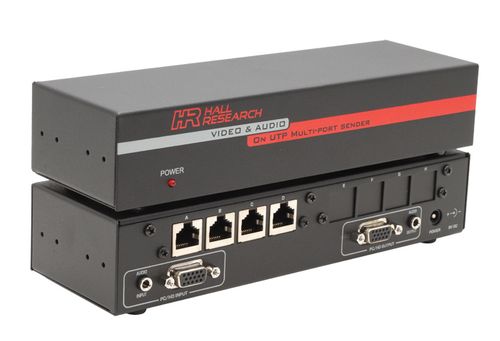

Hall Research 1x4 VGA + Audio Over UTP Splitter (Sender) - UVA-4

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video and Audio over UTP transmitter

The Model UVA-4 is a UTP (Unshielded Twisted Pair) VGA video splitter(sender) with audio. The splitters are available in 2, 4, 8 and 24 outputs for sending your computer's video and audio to remote locations with excellent image integrity and audio quality. The UVA series works in conjunction with URA receivers. Made in the USA.

Key Features

Support for local monitor at transmitter
Multiple Cat5 outputs
Transmit video and audio on one cable
Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
Amplifies the signal for clean and crisp transmission
Differential signaling eliminates ground loops and noise
Handles resolutions up to 1920x1440 at 60Hz
Rugged, Reliable, Compact size
Drive standard Cat5 cables to 1,000 feet

Specifications

Dimensions:	1.22" H x 8.2" W x 3.0" D
Weight:	3 lbs. (shipping)
Power Supply:	From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 6V DC Center-Positive. Do not substitute any other external power supply without contacting the factory first
Max Distance:	Up to 1000 feet
Resolution:	Up to 1920x1440 non-interlaced at 60Hz
Standards:	VGA through UXGA, RGBS or RGB
Video Types:	VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
