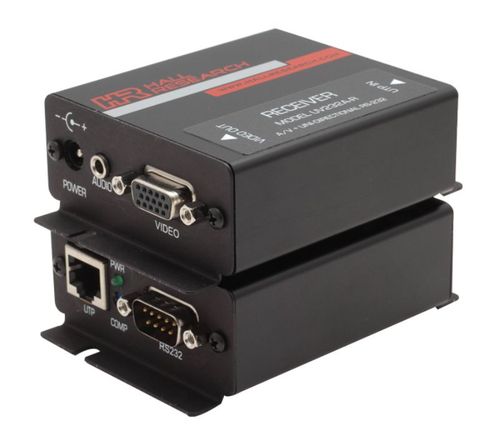

Hall Research VGA, Audio and Uni-Directional RS-232 Sender and Receiver Kit - UV232A

Description

VGA, Audio and Uni-Directional RS-232 Sender and Receiver Kit

The Model UV232A Kit is used to send high resolution video, Audio (L+R Mixed) and uni-directional RS-232 over a single twisted-pair cable to a remote location up to 500 feet away.

The input video can be from a RGBHV (PC video to WUXGA) or YPbPr (HD analog component to 1080p). DDC compliant EDID emulation assures proper PC boot-up with video output. The Uni-directional RS-232 can be used to control LCD's or Projectors that have RS-232 control. Applications include kiosk solutions, conference halls, digital signage, interactive operator systems, factory or laboratory data acquisition and control, and more.

When the Sender is powered from a VESA compliant VGA source (+5v on Pin 9) a power supply (included) is only required at the Receiver. If the source is not VESA compliant in that regard, or if the video is YPbPr (using a 3 RCA to HD15 input cable), then a power supply (included) is needed at both Sender and Receiver.

The kit includes a local unit (Sender) that includes a VGA & serial cables, plus a remote unit (Receiver) with two power supplies.

It is recommended that for best image quality low-skew UTP cables be utilized (such as Hall Research's Zero-Skew cables), otherwise at long distances (>200ft) and high-resolutions, RGB skew may be present and a separate skew corrector would be necessary (HRT Model SKU-RGB).

Key Features

Sends PC or HD video, Audio (L+R Mixed) and Uni-directional RS-232 over single CATx
Wide bandwidth to transmit WUXGA signals (1920x1200 / 60hz) or HD Analog Component (1080p)
Compensation for UTP cable to 500 ft
No power supply required at local sender - when powered from VESA compliant VGA Source
DDC compliant EDID emulation on the Sender
Supports all baud rates to 115 Kbps
Perfect for Kiosk, or Projector Control applications
RS-232 and high quality VGA input cables provided
Compact metal enclosure with mounting provisions
Compact, Rugged, Reliable, and Economical
Made in USA

Specifications

Standards:	Analog VGA Video (RGBHV), YPbPr, or RGB signals with sync-on-green.
Resolutions:	All up to WUXGA (1920x1200 / 60Hz), 1080p
Video Level:	0.7 v p-p on RGB, 5v p-p H/V sync
Bandwidth:	20 Hz to 450 MHz
Common Mode Noise Rejection:	100 dB @ 60 Hz, 70 dB @ 1 MHz, 50 db @ 10 MHz
Max Distance:	Up to 500 ft. (152 meters) based on resolution
Temperature:	Operating: 32 to 122 Deg F (0 to 50 Deg C); Storage: -40 to +185 Deg F (-40 to +85 Deg C)
Enclosure:	Aluminum
MTBF:	100,000 hours (calculated estimate)
Power:	Via the included power adapter. Voltage: 6v DC Center-Positive. Average Power Consumption: 200mA (Sender) 160mA (Receiver)
Size (H x W x D):	1.25" H x 2.75" W x 3.08" D* Each Device *Units have 2 mounting ears that protrude 0.40" beyond the main box on each side.
RS232 Connections:	Pin 2 = RX Pin 3 = TX Pin 5 = GND
