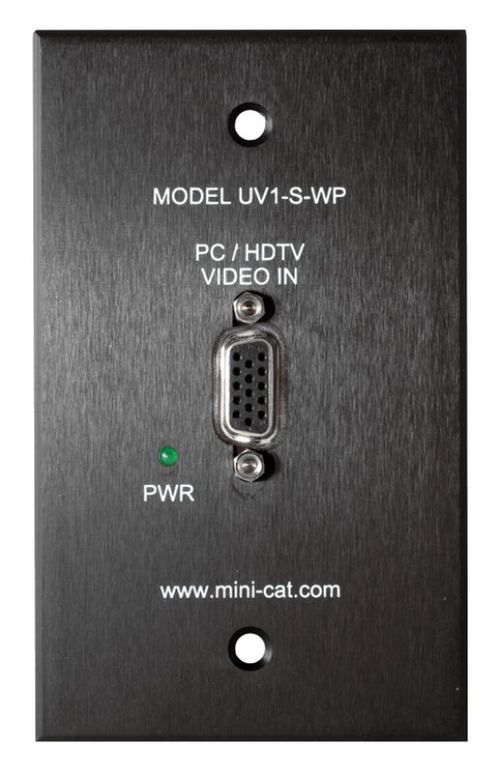

Hall Research Video over UTP Wall Plate Sender - UV1-S-WP

Video over UTP Wall Plate Sender

The UV1-S-WP Mini-Cat® transmits Video and Phantom Power over UTP (Cat5/5e/6) cable up to 500 feet to compatible Receiver (UV1-R or UV1-R-WP). It is constructed as a single gang wall plate with a shallow depth so that it can mount into any size Junction Box. The UV1-S-WP Mini-Cat® supports PC resolutions up to 1920 x 1440 or HDTV resolutions to 1080p. The unit includes a 9 VDC Universal power supply that supplies power to the Receiver via the UTP cable.

• Single gang wallplate construction saves space and simplifies installations
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480p to 1080p.
• Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
• Amplifies the signal for clean and crisp transmission
• Differential signaling eliminates ground loops and noise
• Sends a VGA or Component Video Signal on Cat5/5e/6 cables to 500 feet
• Includes a power supply that connects to the transmitter on screw terminals and can be remotely located using low-voltage wiring.
• Transmits power to the remote receiver
• Can be powered from the receiver side over the Cat5 cable (if a power supply is attached to the receiver)
• LED for power-good indication (blinks if there is insufficient power voltage)
