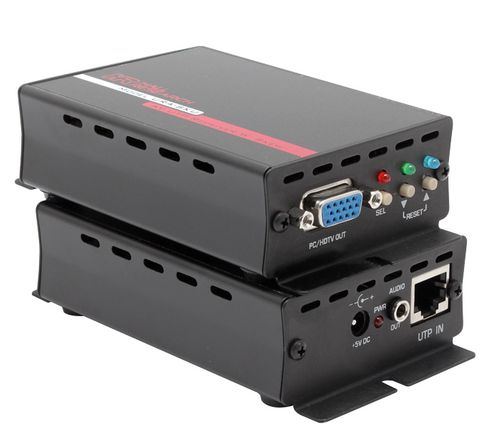

Hall Research Video over UTP Receiver with Skew Correction - URA-SKU

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Video over UTP Receiver with Skew Correction

The URG-SKU Mini-Cat® is a Video over UTP (Cat5/5e/6) receiver. The URG-SKU Mini-Cat® can receive Video from compatible UVx-S transmitters such as Models UV1-S, UV2-S) up to 1,000 feet away. The URG-SKU supports resolutions up to 1920 x 1200 at 60Hz.

Key Features

Receives video on a single CATx cable
Compatible with UV1/2/4/8-S transmitters
Adjustable cable length compensation to 1000 ft
Digitally controlled adjustment eliminates tweaking pots
Supports resolutions up to 1920x1200 at any refresh rate
Differential signaling eliminates ground loops and noise
Compact & rugged metal enclosure with mounting holes
Made in the USA

Specifications

Video Gain:	Unity
Video Standards:	VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)
Connectors:	(1) RJ-45 Female (CATx Input) (1) HD15 Female (Video Output) (1) 2.1mm Female (Power Input)
Nominal Amplitude:	1 V p-p for Y of component video 0.7 V p-p for RGB and for Pr and Pb of component video 4.0 V to 5.0 V p-p, for TTL Sync signals of RGBHV, RGBS
Impedance:	75 ohms
Skew Compensation:	65 nS
Resolution:	Up to 1920x1200 non-interlaced at 60Hz
Audio Gain:	Unbalanced output: 0 dB
Max Distance:	Up to 1000 feet depending on resolution
Frequency Response:	20hz to 20kHz, +/- 1 dB
Audio Type:	Monaural, Simulated Stereo (L+R)
THD + Noise:	0.2% @ 1kHz, 0.3% @ 20kHz at nominal level
Recommended Cable:	CAT 5/5e/6 (shielded or unshielded) for URA-XT and URA-SKU
Power Supply:	100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2A regulated; 2.1mm
Humidity Temperature:	Storage: -40 to +158 degF (-40 to +70 degC) / 10% to 90%, non-condensing Operating: +32 to +122 degF (0 to +50 degC) / 10% to 90%, non-condensing
Cooling:	Convection, vents on each end
Mounting:	Brackets at each end with screw hole provided for Wall or Rack mounting
Enclosure:	Metal
Dimensions:	1.18" H x 2.75" W x 3.85" D (30mm H x 70mm W x 98mm D) Depth excludes connectors
Weight:	Product - 0.75 lb (0.35 kg) Shipping - 1.5 lbs (0.70 kg)
Vibration:	ISTA 1A in carton (International Safe Transit Association)
Safety:	CE
EMI/EMC:	CE/FCC Class A
MTBF:	90,000 hours
Warranty:	2 years parts and labor
