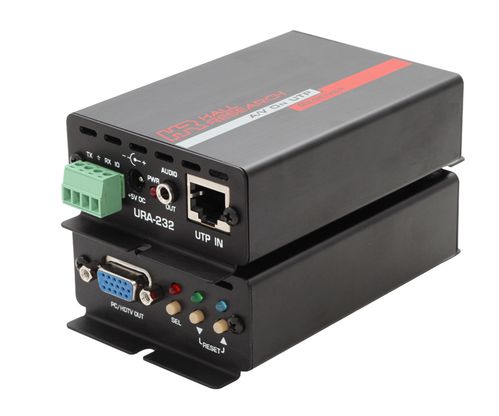

Hall Research VGA + Audio + RS-232 Over UTP with SKU Correction (Receiver) - URA-232

VGA + Audio + RS232 Over UTP Receiver

The URA-232 is a video, audio and uni-directional RS-232 over UTP receiver. The receiver is located at a distance from the AV/RS-232 source and connected to a compatible UTP sender or extender. The URA-232 has a digital input configurable as "Contact" or "Voltage". User defined serial strings can be sent depending on the state of the digital input and also remotely from a compatible UVA-232-4 or UVA-232-8 sender or via serial command. Using the remote capability, you can have URA-232 and URA-232-XT units daisy chained and talk to all the connected devices serially with each sending the same or completely different serial strings.

In a typical application the RS-232 port on the unit is used for transmit only to issue power commands to connected displays (the RS-232 RX pin is used for programming the URA-232 for remote trigger operation).

Using the standard URA-232 with Component Video can produce a excessive brightness and contrast. Therefore, this unit is not recommended for use with Component Video (YPbPr).

For use with YPbPr signals, please order the model URA-232-CP. The cost is the same and the unit is identical in every way except it is optimized for Component Video signal levels.

• Receives audio, video and uni-directional RS232 on a single UTP cable
• Adjustable cable length compensation to 1000 ft
• RGB skew correction
• Digitally controlled adjustment eliminates tweaking pots
• Supports resolutions up to 1920x1200 at any refresh rate
• Compact & rugged metal enclosure with mounting holes
• Easily expandable by daisy-chaining receivers (URA-232-XT)
• Configurable Discrete Input
• Contact Closure or Voltage (5-30 vDC)
• Software GUI
