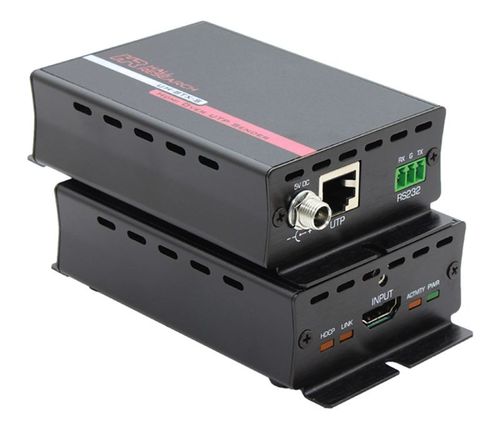

HDMI over UTP Extender with HDBaseT™ (HDBaseT™) Sender
This HDBaseT extension kit comprised of a compact Sender (UH-BTX-S) and corresponding Receiver (UH-BTX-R)
The UH-BT and UH-BTX are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.
The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.
Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.
Note
The UH-BT and UH-BTX Senders and Receivers are compatible with each other; however the maximum distance achievable is dictated by the lower of the two - 230 ft / 70 m.
Key Features- Extend HDMI or DVI over single Cat 5e/6 up to 330 ft (100 m)
- Optional Long Reach mode (BTX Only) to extend 1080p up to 492 ft / 150 m.
- Utilizes HDBaseT™ Class B extension technology
- Can connect to all HDBaseT™ and HDBaseT-Lite™ compliant products
- Full HD support for 1080p deep color, 3D, and 4K UHD
- HDCP Compliant with pass-thru EDID from display back to source
- CEC pass-thru for simplified control among compatible devices
- Uncompressed digital video extension guarantees 100% fidelity
- Reliable, trouble free operation
- Plug and Play – no user configuration required
- Sturdy, compact metal enclosure with mounting provisions
- Compatible with Locking HDMI connectors
- Universal Power Supplies with Locking connectors
- Designed and manufactured in USA
Specifications
Max Distance: | 330 ft (100m) |
Video Standards: | DVI (single link) HDMI 1.4 video specs including 4K UHD, 12 bit color depth and 3D video support HDCP 1.4 |
Connectors:UH-BT(X)-S (1) HDMI Input (1) 3-pin RS-232 screw terminal (1) UTP Output (1) 2.0 mm Locking DC Power Jack input UH-BT(X)-R (1) HDMI Output (1) 3-pin RS-232 screw terminal (1) UTP Output (1) 2.0 mm Locking DC Power Jack input | |
Video Resolutions: | DVI signal VGA (640x480) thru WUXGA (1920x1200) HDTV signal 480i through 4K @30 Hz 4:4:4 or 4K @60 Hz 4:2:0 UHD |
Audio: | All HDMI Embedded Audio |
RS-232: | (1) RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 |
DDC: | Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake |
CEC: | Pass-Thru Consumer Electronics Control (CEC) for compatible devices |
Power Supply: | 100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated |
Temperature: | Storage: -40 to 158 °F (-40 to 70 °C) Operating: 32 to 104 °F (0 to 40 °C) |
Humidity: | 10% to 90%, non-condensing |
Typical DC Current Draw: | 5 VDC, 2.0 A Power Supply Sender: 2.25 watts max Receiver: 4.25 watts max |
Cooling: | Convection |
Dimensions: | 1.18" H x 2.75" W x 3.85" D 30mm H x 70mm W x 98mm D (Depth excludes connectors) |
Weight: | Product: 0.75 lb (0.35 kg) Shipping: 1.5 lbs (0.70 kg) |
Safety: | CE |
EMI/EMC: | CE, FCC Class A |
MTBF: | 90,000 hours (estimate) |
Warranty: | 3 years parts and labor |
