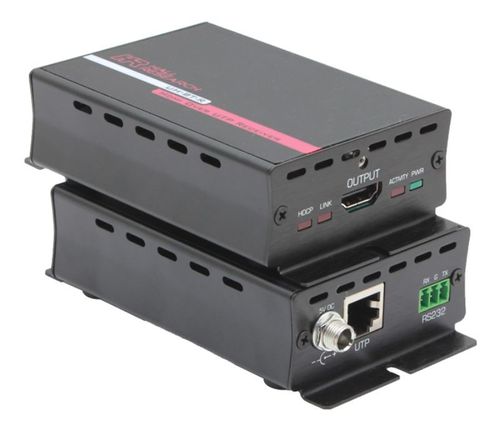

Hall Research HDMI over UTP Extender with HDBaseT™ Class B (HDBaseT-Lite™) Receiver - UH-BT-R

Hall Research HDMI over UTP Extender with HDBaseT™ Class B (HDBaseT-Lite™) Receiver - UH-BT-R

Part Number: UH-BT-R
Our Price: $247.14
Availability: Usually ships the same business day
-
+

Description

HDMI over UTP Extender with HDBaseT™ Class B (HDBaseT-Lite™) Receiver

The UH-BT and UH-BTX are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.

The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.

Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

Note

The UH-BT and UH-BTX Senders and Receivers are compatible with each other; however the maximum distance achievable is dictated by the lower of the two - 230 ft / 70 m.

Key Features
  • Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328 ft (70/100 m) depending on Model
  • Optional Long Reach mode (BTX Only) to extend 1080p up to 492 ft / 150 m.
  • Utilizes HDBaseT™ Class B (HDBaseT-Lite™) extension technology
  • Can connect to all HDBaseT™ and HDBaseT-Lite™ compliant products
  • Full HD support for 1080p deep color, 3D, and 4K UHD
  • HDCP Compliant with pass-thru EDID from display back to source
  • CEC pass-thru for simplified control among compatible devices
  • Uncompressed digital video extension guarantees 100% fidelity
  • Reliable, trouble free operation
  • Plug and Play no user configuration required
  • Sturdy, compact metal enclosure with mounting provisions
  • Compatible with Locking HDMI connectors
  • Universal Power Supplies with Locking connectors
  • Designed and manufactured in USA

Specifications

Max Distance:230 ft (70m)
Video Standards:DVI (single link)
HDMI 1.4 video specifications including 4K UHD, 12 bit color depth and 3D video support
HDCP 1.4
Connectors:UH-BT(X)-S
(1) HDMI Input
(1) 3-pin RS-232 screw terminal
(1) UTP Output
(1) 2.0 mm Locking DC Power Jack input
UH-BT(X)-R
(1) HDMI Output
(1) 3-pin RS-232 screw terminal
(1) UTP Output
(1) 2.0 mm Locking DC Power Jack input
Video Resolutions:DVI signal VGA (640x480) thru WUXGA (1920x1200)
HDTV signal 480i through 4K @30 Hz 4:4:4 or 4K @60 Hz 4:2:0 UHD
Audio:All HDMI Embedded Audio
RS-232:(1) RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200
DDC:Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake
CEC:Pass-Thru Consumer Electronics Control (CEC) for compatible devices
Power Supply:100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated
Temperature:Storage: -40 to 158 F (-40 to 70 C)
Operating: 32 to 104 F (0 to 40 C)
Humidity:10% to 90%, non-condensing
Typical DC Current Draw:5 VDC, 2.0 A Power Supply
Sender: 2.25 watts max
Receiver: 4.25 watts max
Cooling:Convection
Enclosure:Metal (Steel ends, Aluminum extrusion)
Dimensions:1.18" H x 2.75" W x 3.85" D
30mm H x 70mm W x 98mm D
(Depth excludes connectors)
Weight:Product: 0.75 lb (0.35 kg)
Shipping: 1.5 lbs (0.70 kg)
Safety:CE
EMI/EMC:CE, FCC Class A
MTBF:90,000 hours (estimate)
Warranty:3 years parts and labor
