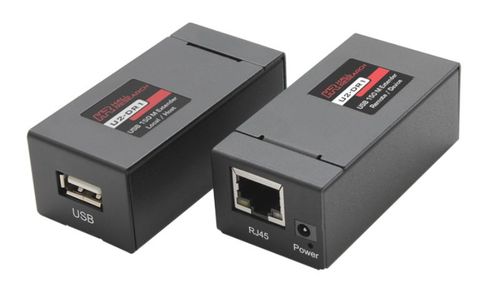

Hall Research USB Extender on CAT6 Cable to 150m (500 feet) - U2-DR1

Hall Research USB Extender on CAT6 Cable to 150m (500 feet) - U2-DR1

Part Number: U2-DR1
Our Price: $316.11
Availability: Usually ships the same business day


USB Extender on CAT6 Cable to 150m (500 feet)

The U2-DR1 extends a host PC's USB 2.0 port on a CAT6 cable to 150 meters (500 ft) with data rates up to 480 Mb/s.

The local (host) side gets its power from the PC and the remote (device) side is powered by an included universal power supply.

The U2-DR1 is compatible with all PCs and Macs and requires no driver installation. It also extends the USB port transparently without any hidden hubs for maximum compatibility across all USB devices. The U2-DR1 is a perfect solution for corporate, education, industrial, and commercial applications.

Key Features
  • Extends High-Speed USB to 150 meters (500 ft)
  • Plug-n-play No driver installation required
  • Supports a vast variety of USB devices including webcams, flash memory, touch screens, printers, scanners, etc.
  • Includes Universal Power Supply


Supported Systems:Microsoft Windows, Mac OS, Linux
Max Data Rate:480 Mbps
Max Cable Distance:150m / 500 ft
UTP Cable Type:CAT5e/CAT6
Operating Temperature:32 to 122 F (0 to 50 C)
Operating Humidity:20% - 80% RH
Housing Material:Metal
Dimensions:Ends: 2.5 x 1.3 x 0.9 inch (65 x 35 x 25 mm)
Shipping: 8.5 x 7.5 x 2.5 inch (21.6 x 19 x 6.5 cm)
Weight:Weight Each end: 0.2 lbs (90g)
Shipping: 1.2 lbs (550g)
