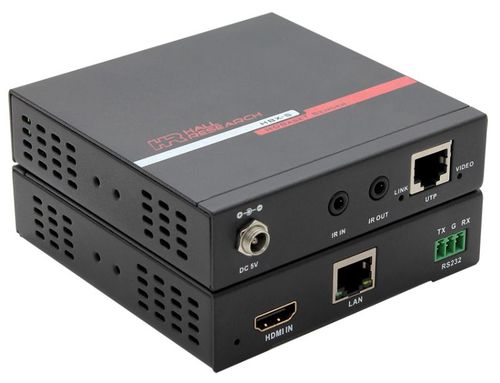

Hall Research HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Sender) - HBX-S

Description

HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Sender)

This product is a Class A HDBaseT compliant Sender (Transmitter) that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.

The HBX-S includes a universal 5v power supply. IR emitter and IR detector cables are also included.

Key Features

Fully Compliant with HDBaseT standard
Supports virtually all HDMI and DVI resolutions including 4K UHD
Extends, Video, Audio, RS-232, IR, and Ethernet
Supports extension to 100 m (330 ft)
Fully isolates grounds between TX and RX sides
Compact, Rugged, Reliable, and Economical

Specifications

Video Standards:	DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)
Signal Type:	TMDS
Resolutions:	DVI signal - VGA (640x480) thru WUXGA (1920x1200) HDTV signal - 480i through 1080p Digital Cinema - 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60 m
Audio Formats:	All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192 kHz sample rate)
DDC:	Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
CEC:	Pass-Thru CEC for Consumer Electronics Control compatible devices
RS232:	Bidirectional (full-duplex) any baud rate up to 115,200
Ethernet:	100BaseT Ethernet LAN
IR:	Extended in both directions. Carrier modulation range from 30 kHz to 60 kHz
Power Supply:	100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2 A, regulated
Power:	Sender & Receiver: 10 watts maximum
Temp/humidity:	Storage: -40 to +158 �F (-40 to +70 �C) / 10% to 90%, non-condensing Operating: +32 to +122 �F (0 to +50 �C) / 10% to 90%, non-condensing
Cooling:	Convection
Mounting:	End plates with hole for surface mounting
Enclosure type:	Metal (Aluminum ends, Aluminum Extrusion)
Dimensions:	1.0" H x 3.9" W x 3.9" D (25mm H x 100mm W x 100mm D) Depth excludes connectors
Product weight:	Sender 9.3 oz (0.58 lb or 264 g) Receiver 10 oz (0.63 lb or 284 g) Kit (shipping) 37 oz (2.3 lb or 1050 g) includes: sender, receiver, universal power supply, manual, and packaging
Safety:	CE
EMI/EMC:	CE, FCC Class A
MTBF:	90,000 hours (Calculated Estimate)
Warranty:	3 years parts and labor
