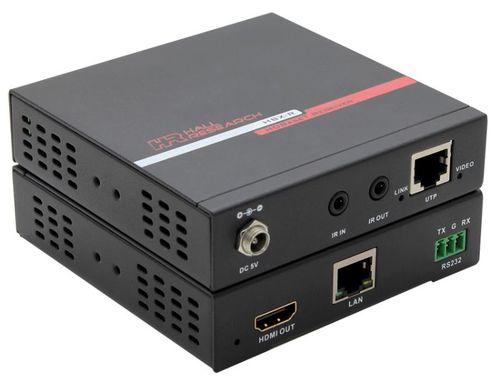

HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Receiver)

This product is a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.

Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.

Note about Power Supply

When connected to HBX-S, the Receiver needs the power supply connected as shown above. However, certain Senders, such as the HSM-44-BX Matrix Switch provide Power-over-Cable on their HDBaseT outputs eliminating the need for connecting a power supply to the Receiver.

Key Features
  • Fully Compliant with HDBaseT standard
  • Supports virtually all HDMI and DVI resolutions including 4K UHD
  • Extends, Video, Audio, RS-232, IR, and Ethernet
  • Supports extension to 100 m (330 ft)
  • Fully isolates grounds between TX and RX sides
  • Compact, Rugged, Reliable, and Economical


Video Standards:DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)
Signal Type:TMDS
Resolutions:DVI signal - VGA (640x480) thru WUXGA (1920x1200)
HDTV signal - 480i through 1080p
Digital Cinema - 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60 m
Audio Formats:All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD
Master Audio (32-192 kHz sample rate)
DDC:Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
CEC:Pass-Thru CEC for Consumer Electronics Control compatible devices
RS232:Bidirectional (full-duplex) any baud rate up to 115,200
Ethernet:100BaseT Ethernet LAN
IR:Extended in both directions. Carrier modulation range from 30 kHz to 60 kHz
Power Supply:100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2 A, regulated
Power:Sender & Receiver: 10 watts maximum
Temp/humidity:Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, non-condensing
Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, non-condensing
Mounting:End plates with hole for surface mounting
Enclosure type:Metal (Aluminum ends, Aluminum Extrusion)
Dimensions:1.0" H x 3.9" W x 3.9" D (25mm H x 100mm W x 100mm D)
Depth excludes connectors
Product weight:Sender 9.3 oz (0.58 lb or 264 g)
Receiver 10 oz (0.63 lb or 284 g)
Kit (shipping) 37 oz (2.3 lb or 1050 g) includes: sender, receiver, universal power supply, manual, and packaging
MTBF:90,000 hours (Calculated Estimate)
Warranty:3 years parts and labor
