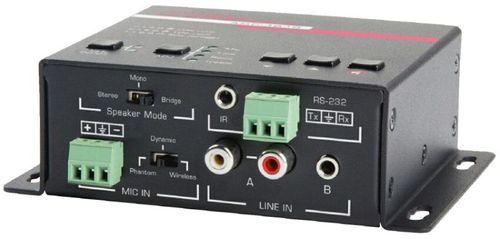

Hall Research 40 Watt Audio Amplifier with Microphone Mixer and RS-232 Control - AMP-4840

40 Watt Audio Amplifier with Microphone Mixer and RS-232 Control

The AMP-4840 is a compact, economical and energy efficient (Class D) mono / stereo audio amplifier with 3 inputs (2 line in and 1 balanced mic). Versatile design is compatible with dynamic, condenser or wireless microphones with fully adjustable control options including RS-232, IR, and front panel buttons. Functions include bridge connection, dual-mono, EQ control, and microphone mixer.

It is designed to drive one or two speakers, but is capable of driving 4 speakers in parallel mode as shown below. In the below configuration each 8 ohm speaker will be able to deliver up to 10 watts of power for a total of 40 watts. The AMP-4840 is a perfect for classrooms, meeting rooms, boardrooms, sports bars, and more.

• Drives: 2x 20w @ 4? or 2x 10w @ 8? or 1x 40w @ 8? in bridge mode
• Two stereo audio inputs, switchable by button, IR remote & RS-232
• Volume / Bass / Treble controllable by buttons IR remote & RS-232
• MIC port supports balanced or unbalanced signals
• 3.5mm jack line audio output with controllable volume
• Mono mix switch for summing left and right channels for driving mono outputs
