Hall Technologies 4K Video & USB Extension for Point-to-Point or Matrix over IP, - VERSA-4K-S

Hall Technologies 4K Video & USB Extension for Point-to-Point or Matrix over IP, - VERSA-4K-S

Part Number: VERSA-4K-S
Our Price: $775.91
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

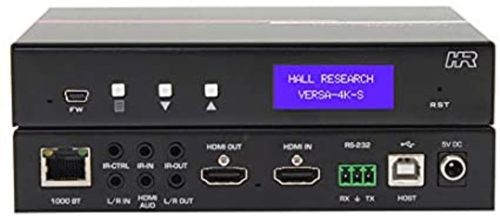

Hall Technologies VERSA-4K-S 4K Video and USB Extender (Transmitter) for Point-to-Point or Matrix Over IP

The VERSA-4K provides the means to extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features include, low latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical), USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and webGUI control, Dynamic Virtual Matrix™ (DVM) operation, PoE (power over Ethernet) support, and more. In a 1-to-1 setup (one Sender to one Receiver) no external network equipment is needed, just connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit network switch (with IGMP and Jumbo-frame support) is required.

Key Features
  • Extend and switch multiple 4K HDMI video and USB on a simple Gigabit LAN
  • Can be used directly (without LAN) for point-to-point HDMI/DVI video, USB 2.0, Audio, IR, and RS232 extension on Cat6
  • Low latency video and audio
  • Video rotation and flipping (horizontal and vertical)
  • User configurable video-wall processor
  • Extends signals up to 120 meters (400 ft)
  • HDMI video loop output on the Sender
  • Extracted HDMI audio in stereo analog format on both Sender and Receiver
  • 4 USB ports on the Receiver, 2 for keyboard and mouse plus 2 general purpose USB 2.0 ports
  • PoE powered.


Supported ResolutionsPC (VGA to WUXGA) HDTV(480i to 4K/UHD)
Power Supply12V/1A DC with universal AC plug kit and locking DC connector (US/EU standards, CE/FCC/UL certified)
Operating Temperature+32 to +104F (0 to +40°C) 20-90%, non-condensing
Chassis MaterialMetal
Mounting OptionMounting Brackets (included)
