Hall Technologies 4K Video & USB Decoder Extension for Point-to-Point or Matrix over IP - HT-VERSA-4K-R

4K HDMI & USB over LAN

HT-VERSA-4K is a complete AV over IP solution, which can extend 4K video with one frame latency, USB 2.0, keyboard, mouse, IR, RS-232, and analog audio over a simple Gigabit Ethernet Network.

• Remote PC Management
• Digital Sinage
• Interactive Classrooms
• Surveillance
• Live Broadcasting
• Patient Monitoring
• Conference Rooms
• Auditorium
• Bars

4K Video & USB over IP in a 1-to-1 setup (one sender to receiver) does not require external network equipment. Simply connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit Ethernet switch (with IGMP and Jumbo-frame support) is required. Advanced features include video wall processing to extend and split 4K video onto multiple displays, video rotation and flipping (horizontal and vertical), USB device types such as Usb flash drives, automatic KVM switching, Dynamic Virtual Matrix (DVM) operation, PoE (Power over Ethernet) support, and more.

4K Video & USB over IP a 1-to-1 setup (one sender to one receiver) does not require external network equipment. Simple connect a Cat6 cable up to 120 meters (400 ft) between the two ends.

The encoder in the sender (HT-VERSA-4K-S) uses visually lossless compression, which gives pixel perfect quality at the remote end. It can accept HDMI resolutions up to 4K@30Hz, 4:4:4 with HDCP 2.2. It includes a video loop output together with an extracted HDMI audio in analog format for maximum flexibility and integration.

The receiver (HT-VERSA-4K-R) has a built-in-scaler that not only supports a view wall up to 16x16, but can also change the orientation of the image. The receiver also includes extracted HDMI analog audio. Two USB ports are dedicated for use general purpose USB 2.0 ports that support touch screens and memory devices, along with many other USB decide functions. n a many-to-many setup, a dedicated gigabit Ethernet switch )with IGMB and Jumbo-frame support) is required.

The encoder in the sender (HT-VERSA-4K-S) uses visually lossless compression, which gives pixel perfect quality at the remote end.

It can accept HDMI resolutions up to 4K@30Hz, 4:4:4 with HDCP 2.2. It includes a video loop output together with extracted HDMI audio in analog format for maximum flexibility and integration.

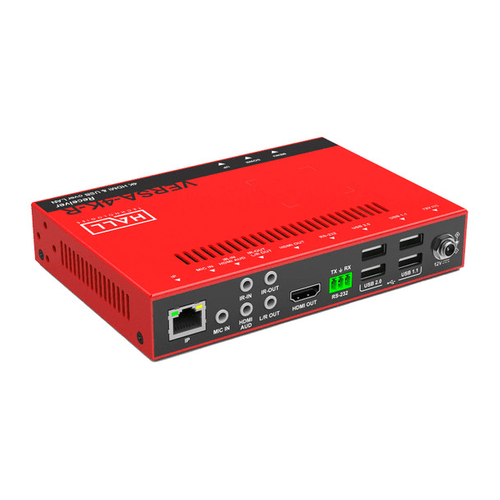

The receiver (HT-VERSA-4K-R) has a built-in- scaler that not only supports a video wall up to 16x16, but can also change the orientation of the image.

The receiver also includes extracted HDMI analog audio.

Two USB ports are dedicated for use with keyboard and mouse (auto-switching based on user activity) and two general purpose USB 2.0 ports that support touch screens and memory devices, along with many other USB device functions.
