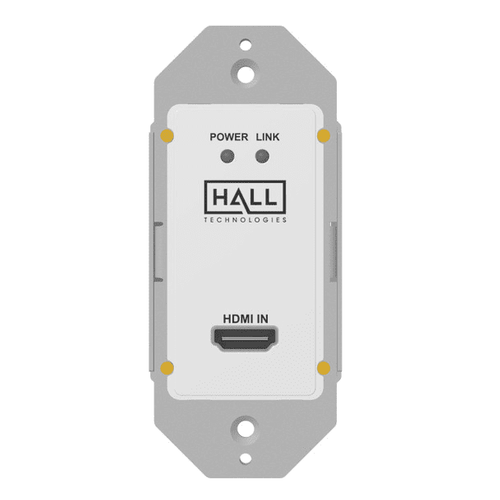

Hall Technologies Single HDMI Wallplate for AIM-70-RX - HT-AIM-70-TX-WP

This is a 1-Gang Wall plate transmitter. It supports resolutions up to 4K@60 4:2:0 8bit with HDCP 2.2 compatibility.

This is a Single Gang Wall-Plate Transmitter. It supports resolutions up to 4K@60 4:2:0 8bit, and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6A/7 cable. With one-way PoC function, the transmitter can be powered by the receiver (the receiver should support this function). The transmitter also features one-way IR pass-through from transmitter to receiver, CEC pass-through, and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232 port. The transmitter can be used with HT-AIM-70-RX receiver.

• HDMI 1.4 with 4K@60Hz 4:2:0 8bit and HDCP 2.2 compatibility.
• Supports signal transmission up to 35m/115ft for 4K and 60m/197ft for 1080P via a single Cat 5e/6 cable.
• Supports signal transmission up to 40m/131ft for 4K and 70m/230ft for 1080P via a single Cat 6A/7 cable.
• Supports one-way IR pass-through from transmitter to receiver.
• Supports CEC pass-through via HDBT port.
• Supports firmware upgrade through RS232 port, and can be set through the DIP switch.
