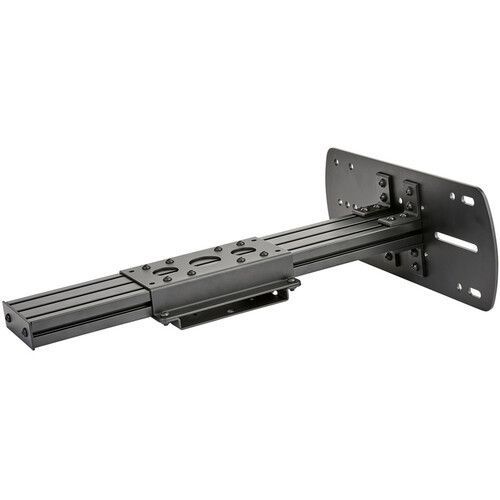

Epson ELPMB79 Mounting Arm for projector ceiling, wall or truss installation - V12H006AR0

The ELPMB79 Mounting Arm pairs with the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames. An easy-to-install solution, the mounting arm provides a variable offset away from a wall or truss. Designed for flexible configuration and mounting options, the ELPMB79 accommodates projector ceiling, floor or wall installation. In addition, it enables projection in three different orientations: landscape, portrait and floor.

To create an exceptionally flexible system with multiple functions, including tilt and rotation, the ELPMB79 can be paired with the following adapters: tilt adapter mounting plate (ELPMB77), tilt adapter (ELPMB81) and rail adapter (ELPMB85).

• Flexible configuration and mounting options
• Provides 14.6'' (370 mm) of adjustment range
• Parallel or perpendicular positioning of arm
• Ceiling or wall mount installation
• Pairs with the ELPMB76 and ELPMB84 stacking frames

OVERVIEW


• Ideal for challenging projector installations — features flexible configuration and mounting options
• Easy to adjust — the mounting arm’s sliding bracket fastens at the desired location; provides 14.6'' (370 mm) of adjustment range
• Versatile positioning — the mounting arm's profile can be changed by fastening it to the installation plate in two different ways (parallel or perpendicular)
• Flexible mounting options — mount to a ceiling or wall; or mount to a truss by attaching two truss clamps (not included) to the wall plate’s threaded holes with M12 screws (not included)
• Frame mounting — attaches to the Alfa (ELPMB76) and Beta (ELPMB84) projector stacking frames
• Extensive accessories — to create a flexible system with multiple functions (tilt, rotation, etc.), the arm is compatible with the following adapters: tilt adapter mounting plate (ELPMB77), tilt adapter (ELPMB81) and rail adapter (ELPMB85)
• Linear adjustment — for fast and precise installation of ultra short throw (UST) or other projectors without a zoom lens, utilize the ELPMB85 Rail Adapter for fine forward/backward adjustment
• Sturdy, convenient design — for outstanding functionality and ease of use; dimensions (W x D x H): 7.9'' x 19.7'' x 26.8'' (200 mm x 500 mm x 680 mm)
