Epiphan Epiphan SDI2USB 3.0 - EPISDI2USB

Epiphan Epiphan SDI2USB 3.0 - EPISDI2USB

Part Number: EPISDI2USB
Our Price: $799.95
Availability: Usually ships the same business day
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

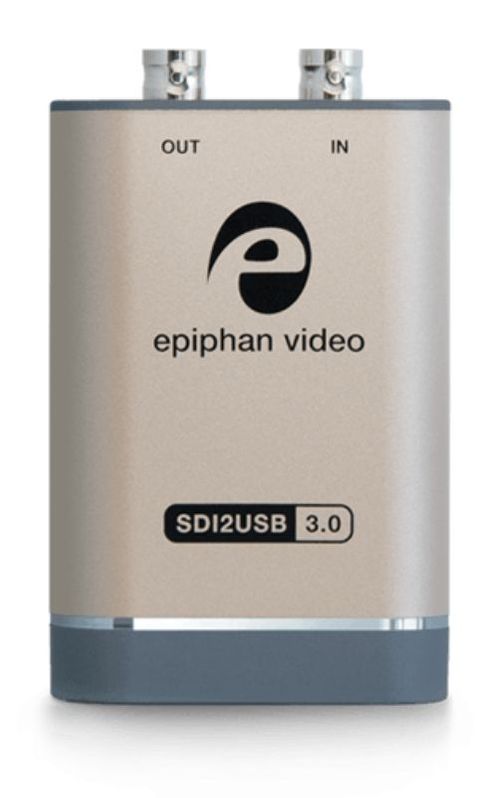

Production-quality SDI to USB video capture card

Best in class USB capture card for SDI video capture - SDI2USB 3.0 is the industry standard for capturing and recording uncompressed, production-quality video at up to 60 fps directly from 3G-SDI, HD-SDI, and SD-SDI sources. Simply connect your SDI video input to your Windows or Linux computer using USB 3.0 and access the Epiphan Capture Tool for easy preview and recording.

Flexible SDI input - The SDI input port is designed to capture video signals from 3G-SDI, HD-SDI, and SD-SDI, including embedded audio.

SDI output port for confidence monitoring - Connect a monitor or projector to the SDI output port to monitor your SDI signal in high resolution.

Designed for maximum usability and durability - Rugged yet lightweight design is ideal when moving from office to boardroom, laboratory, or anywhere you need to capture and record SDI video. Powered over USB, SDI2USB 3.0 eliminates the need for an AC power connection. The device contains no internal fans or other moving parts for silent and reliable SDI video capture.

Capture up to 60 fps with USB 3.0 - Capable of transferring uncompressed SDI video to your computer or laptop in beautiful Full HD at 60 fps. Supports USB 3.0 and USB 2.0 data uplink.

Invaluable tool for live production - SDI2USB 3.0 solves the problem of how to effectively transfer SDI video content from a professional-grade video mixing console to a laptop or desktop computer.

High-quality SDI output with flexible recording options - Choose to record your SDI as a single video file or as a series of individual graphic files.

Epiphan’s capture tool and drivers - All Epiphan USB capture cards come with our free capture software and drivers which provide a seamless interface to a wide range of industry-standard encoding and streaming software. To maintain the highest standard of product performance, we issue occasional upgrades to our video capture cards completely free of charge. Your Epiphan video capture device notifies you when a firmware upgrade is available for download.

Windows and Linux application support - In addition to the free Epiphan Capture tool, SDI2USB 3.0 works with multiple third-party applications for Windows and Linux through DirectShow and V4L2 respectively. This allows the captured SDI video to be used in many different streaming, recording, and conferencing applications. These include, but are not limited to: Windows Camera, VLC, Wirecast, OBS, vMix, XSplit, Skype, and Google Hangouts.

What’s in the box? - SDI2USB 3.0 comes with all the cables and connectors you need to capture 3G-SDI, HD-SDI, and SD-SDI signals.


InterfaceUSB 3.0, USB 2.0
Dimensions3.54"×2.36"×0.91" (90mm × 60mm × 23mm)
ConnectorsSerial Interface BNC, USB standard B type
Video SamplingMultiple RGB and YUV (YCbCr) color formats including RGB24, YUY2, and I420
Supported video modesUp to 1920×1200. Custom resolutions.
Update RateResolutionFrames per second
SDI Audio16-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates
LEDsOne LED to indicate the status of the SDI2USB 3.0 (power, readiness, and operation in progress)
OS SupportWindows 10, Linux DirectShow (Windows), and V4L (Linux) supported
Country of OriginMade in North America (Canada)
