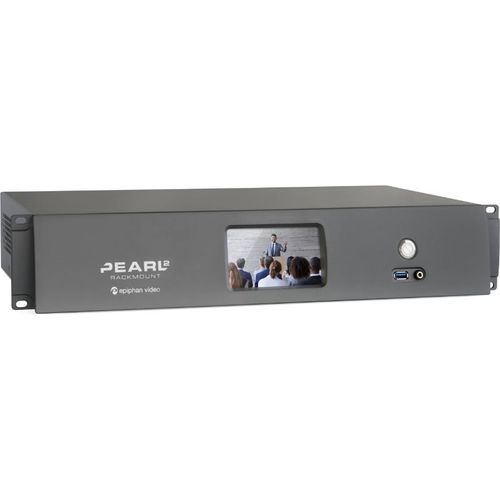

Epiphan Epiphan Pearl 2 Rackmount - EPIPEARL2RACK
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Manage your streaming, recording, and live switching in one place with this all-in-one video encoder and video production system.
Stream to viewers everywhere Simultaneously live stream to YouTube, Facebook or other content delivery networks and content management systems using SRT, HLS, MPEG-DASH, custom RTMP/RTMPS, and RTSP. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes. Integration with Kaltura and Panopto CMSs means no complicated stream URLs to set up. Just schedule your webcast event and start streaming.
Share your webcast Locally share unicast or multicast streams to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP.
Secure streaming Stream content securely with Secure Reliable Transport (SRT) end-to-end 256 bit AES encryption, HLS and MPEG-DASH over HTTPS, as well as Real Time Messaging Protocol Secure (RTMPS).
Leverage SRT for high-quality, low-latency video streaming The Secure Reliable Transport (SRT) protocol uses the latest in live streaming technology to keep your live video productions looking great. Add a remote guest or contributor over SRT to bring professional-quality sources into your Pearl-powered productions.
Internal 500 GB SSD drive Save recordings directly to the internal 500 GB solid state drive. Easily download recordings and manage files using the Admin panel or Epiphan Live.
Automatic or manual file uploads - Fail-proof recording to the local SSD hard drive while automatically transferring recorded files to a USB drive, local server or network storage (FTP or SFTP).
Switch video sources live - Incredibly easy to use, Pearl 2’s intuitive touch screen makes switching between your video sources and layouts a breeze. Or use the browser-based Epiphan Live and switch from almost anywhere using a tablet, PC, or mobile phone.
Custom layout designer - Design custom layouts like PiP with the easy drag-and-drop custom layout editor. Combine, crop, and scale video sources to make dynamic layouts. Add transparent png images, custom backgrounds, text overlays, timestamps, and more.
Easy PiP layouts - Make PiP, side-by-side, three-quarter layouts and more for dynamic-looking visual presentations. The possibilities are endless.
Chroma key for green screens and graphics - Pearl-2’s chroma key support allows for easy green screen setups and third party titling software to include rich animations and lower thirds.
Images and dynamic text - Customize the look of your event with transparent PNG images and custom backgrounds. Easily add timestamps and other dynamic text content to layouts. Create custom system variables for even more flexibility, like adding the current GPS location.
Other Great Features- Configuration presets - Quickly apply settings to your Pearl-2 with a configuration preset and reconfigure it on the fly for a consistent set up each time. You can even download a configuration preset and upload it to other Pearl-2 systems.
- AV Sync - Adjust AV synchronization on each video input from -300 ms to 300 ms and instantly preview the results.
- Custom no-signal images - Be prepared for any signal loss by setting a custom image to maintain your viewer’s engagement.
- Deinterlacing - Convert an interlaced video input signal to a non-interlaced signal.
- USB camera control - Control the contrast, brightness, saturation and more on connected USB web cameras from the Admin panel.
- On-air status light - Connect a USB status light*[user supplied] and instantly see when streaming or recording is in progress. Select models from Busylight and Delcom Products supported.
- Multi-track recorders - Record multiple channels in a single multi-track file and ensure recordings start and stop at the same time. The built-in synchronization tool lets you split the file into individual tracks for post-processing.
- EDID compatibility built in - Pearl-2 has a robust, factory-set extended display identification data (EDID) so that the video input ports correctly emulate a monitor for the connected video input source. Custom EDIDs are supported.
- Time sync (NTP, PTP, RDATE) - Use an NTP (RFC 868), RDATE, or PTP v1 (IEEE-1588-2002 V1) time server to synchronize the system time that’s used for time stamps and labeling recordings, or set the system time manually.
Specifications
| Video inputs | Local video inputs: | (2) 12G SDI (2) HDMI™ 1.4a1 / DVI2 (2) 4K HDMI™ 1.4a (UHD/DCI)3 / DVI2 (2) USB 3.0 (UVC) - rear panel |
| Video over Ethernet5: | RTSP4 NDI, or NDI|HX6 (Alpha channel support) SRT (push)6 | |
| Connectors: | (4) HDMI type A (female) (2) BNC (female) (2) USB-A (female) - rear panel (1) RJ-45 | |
| Aspect ratios: | 3:2, 4:3, 16:9, 16:10, and custom aspect ratios | |
| Standard resolutions: | PAL, PAL wide, NTSC, NTSC wide | |
| Input resolution range: | 640×480 to 4096×2160 | |
| Frame rate: | Up to 60 fps7 | |
| Video input color spaces: | HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4 SDI: RGB 4:4:4, YCRCB 4:2:2 | |
| Deinterlacing: | Yes | |
| Maximum cable length for SDI: | 300 ft | |
| Maximum cable length for USB 3.0: | 6 ft | |
| Audio inputs | Analog audio inputs: | (4) XLR pro line level (+4.0 dBu) up to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs) (1) RCA consumer line level -10 dBV (L/R stereo pair) |
| Connectors: | (4) XLR (female) (2) RCA (female) | |
| Digital audio inputs9: | (2) SDI8 (4) HDMI (3) USB (rear panel) (6) RTSP (from RTSP input over Ethernet) (3) NDI (from NDI input over Ethernet (6) SRT (from SRT input over Ethernet) | |
| Connectors: | (2) SDI (female) (4) HDMI (female) (2) USB (female) - rear panel (1) RJ-45 (female) | |
| Audio gain control: | 0 dB to +30 dB | |
| Audio mute: | Yes | |
| Configurable audio delay: | -300 ms to +300 ms | |
| Video processing | Video output color space: | 4:2:0, 8 bits per color |
| Video codec: | H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color Encoding profile: High, Main, Baseline Profile levels: 3.0, 3.1,3.2,4.0,4.1, 5.1 Motion JPEG NDI NDI|HX | |
| Bitrate: | 1 to 50 Mbps (selectable) | |
| Bitrate control: | Constant | |
| Hardware accelerated video encoding: | Optional | |
| Video scaling: | Software and hardware | |
| Chroma keying: | Upstream/downstream keying | |
| Key frames: | 1/2 s, and 1 s up to 5 s in 1 second intervals | |
| Audio Processing | Compression: | MP3, AAC, and PCM |
| Sampling rate: | MP3: 22 kHz, 44 kHz, 48 kHz AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz PCM: 22 kHz, 44 kHz, 48 kHz | |
| Bitrate: | 64 to 320 kbps (MP3 and AAC) | |
| Video output | Signal types: | (1) HDMI 2.0 (port 1) (1) HDMI 1.4a (port 2) (6) H.264/AVC digital video over Ethernet (2) NDI (unicast) (6) RTSP (6) SRT (push) (6) HLS (push) (6) MPEG-DASH (push) |
| Connectors: | (2) HDMI (1) RJ-45 (female) | |
| Streaming protocols: | MPEG-TS and FLV RTSP over TCP/UDP SRT (push) over UDP HLS (push) over HTTP/HTTPS MPEG-DASH (push) over HTTP/HTTPS Multi-Publish to Streaming Server / CDN (SRT, RTSP, RTMP, RTMPS) HLS (pull) - Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch | |
| Multicast streams: | RTP, MPEG-TS & RTP, and MPEG-TS over UDP | |
| Resolution ranges: | Recorded: 480p to 2160p Streamed: H.264: 480p to 2160p NDI streamed: 480p to 1080p HDMI output ports: 480p to 2160p | |
| Frame rate: | Up to 60 fps | |
| Formats: | H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color Encoding profile: High, Main, Baseline Profile levels: 3.0, 3.1,3.2,4.0,4.1 Motion JPEG NDI | |
| Network traffic shaping (multicast streams): | 4 Mbps to 95 Mbps (configurable) | |
| Audio output | Analog audio output: | (1) 3.5 mm stereo headphone jack - front panel |
| Digital audio outputs: | RTSP, SRT. and NDI audio over Ethernet HLS and MPEG-DASH audio over HTTP/HTTPS HDMI audio (embedded) | |
| Monitor and control | Touch screen: | 4.3 inch touch screen monitor (built in) resolution: 800x480 |
| USB keyboard: | Connect a standard USB keyboard (optional) | |
| USB status light: | Connect a single USB status light (optional), supported models: -Kuando BusyLight models: UC Alpha and UC Omega -Delcom Products USB HID single color and multi-color signal indicators | |
| Recording and storage | Record formats: | AVI, MOV, MP4, and MPEG-TS |
| Upload image formats: | JPEG, PNG | |
| Internal hard drive: | 512 GB SSD10 | |
| File transfer protocols: | FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync | |
| Network file share protocols: | CIFS/SMB | |
| File system for USB storage: | FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS | |
| External USB ports: | (1) USB 3.0 - front panel (2) USB 3.0 (UAV/UAC) - rear panel | |
| Bitrate: | Up to 50 Mbps | |
| Communication | USB standards: | USB 1.1, USB 2.0, and USB 3.0 HDCP compliant |
| Serial port: | (1) Bidirectional RS-232 (female) | |
| Serial port protocols: | Data bits: 7 or 8 (default) Stop bits: 1 Parity: None Flow control: None, Hardware or Software | |
| Serial port baud rate: | 19200 bps | |
| Ethernet host port: | (1) RJ-45 (female) | |
| Ethernet data rate: | 10/100/1000 Base-T, half/full duplex with autodetect | |
| Maximum Transmission Unit: | 68 to 1500 MTU (configurable) | |
| Protocols: | DHCP, TLS 1.2, LDAP, mDNS, UPnP, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP AWS S3 | |
| Network discovery/Announce: | UPnP, SAP | |
| Network security | 802.1x EAP methods: | PEAP, EAP-TLS, EAP-TTLS |
| Administration and control | Admin panel: | Local web UI for full administration. On-screen display and mobile UI for confidence monitoring, administration, and control. Local Admin panel access using a USB mouse, keyboard, and monitor connected directly to Pearl-2 with built-in virtual keyboard and touch-screen monitor support. |
| Epiphan Live: | Local web-based UI to easily control streaming, recording, and switching. | |
| Secure access: | Multiple user accounts and passwords. HTTPS for secure Admin panel and Epiphan Live access, as well as local network access to the live channel broadcast. | |
| Remote access: | Remote login for rescue troubleshooting and control. Cloud versions of the Admin panel and Epiphan Live available for Internet access. | |
| API: | Yes (HTTP/HTTPS or RS-232) | |
| Crestron driver: | Yes | |
| Integrations | Content Management Systems: | Kaltura Panopto |
| Cloud-based video production: | AV Studio | |
| General | Power supply: | Internal: 100-240 VAC, 50-60 Hz |
| Power use: | 0.8 A, 100-240 VAC | |
| Operating temperature: | 32° to 104° F (0° to 40° Celsius) | |
| Cooling: | Fan air flow: Bottom front to back | |
| Enclosure: | Metal | |
| Form factor: | Portable desktop model 19" rack mountable model 19" Rackmount Twin model | |
| Dimensions ( W × D × H ): | Pearl-2: 11.81" × 9.45" × 3.54" (300mm × 240mm × 90mm) Pearl-2 Rackmount: 19 ?" × 3½" × 10 ?" (485 mm × 89 mm × 276 mm) - dimensions include mounting tabs Pearl-2 Rackmount Twin: 19 ?" × 3½" × 10 ?" (485 mm × 89 mm × 276 mm) - dimensions include mounting tabs | |
| Weight: | Pearl-2: 8.38 lbs (3.8 kg) Pearl-2 Rackmount: 12.1 lbs (5.5 kg) Pearl-2 Rackmount Twin: 14.6 lbs (6.6 kg) | |
| Regulatory compliance: | FCC compliance: Part 15 CE compliance: Directive 2014/30/EU - Electromagnetic Compatibility Directive 2014/35/EU - Low Voltage Directive Directive 2011/65/EU - RoHS |
1 HDCP compliant.
2 Using HDMI port with adapter.
3 Requires 4K feature add on.
4 Up to six 1080@30 inputs can be from RTSP sources or up to one 4K source can be from an RTSP source.
5 A mix of video over Ethernet sources are supported. Just ensure that total system loading is withing acceptable levels.
6 Up to three 1080@30 inputs or up to one 4K input source.
7 Except the HDMI 4K input ports, which support up to 30 fps.
8 Digital audio is de-embedded from the digital source.
9 SD-SDI audio is not supported.
10 Approximately 100 MB of hard drive space is reserved for system use. Recording space can be virtually unlimited with offload to networked storage.
