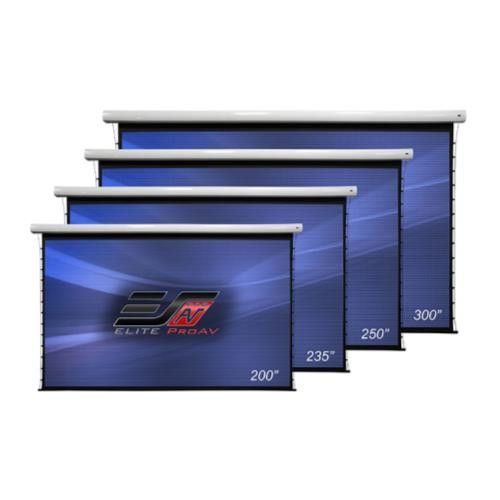

Elite Screens Tension Pro, 300", 16:9, CineWhite® fabric - TP300XWH2

Elite ProAV’s Tension Pro Series is a large-venue motorized retractable projector screen. It features superior flatness using a tab-tensioned system design and is available in sizes from 200? – 300? in a 16:9 (HDTV) aspect ratio. Standard accessories include Infrared and Radio Frequency remote controls, a wall box controller, and 12-volt capability to synchronize the screen’s operation with the projector’s power cycle. The Tension Pro is ideal for projection presentations in auditoriums, gymnasiums, or any other large venue indoor environments.

Screen Material


• CineWhite® 1.1 Gain (tensioned matte white) front projection surface
• Wide diffusion uniformity allows viewers to see a clear bright picture from any angle
• Compatible with standard “Long-Throw”, Short Throw and Ultra Short Throw (UST) projectors
• Standard black masking borders absorb projector overshoot while enhancing visual contrast
• Black backing eliminates light penetration for a sharper, brighter, and clearer picture
• Available in the following range of diagonal sizes:
• 200”, 235”, 250?, and 300? in 16:9 aspect ratio
• 189? in 16:10 Aspect Ratio
Control System


• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller
• Wireless 12v trigger capability via Radio Frequency remote control


Design and Installation


• Heavy-duty aluminum casing
• Tab-tensioned design provides a flat and taut projection surface ideal for use with ultra-short, short-throw, and standard (long) throw projectors
• Dual wall/ceiling mounting points on 200” models only
• Ring bolts included for suspended ceiling installation (models 235”-300”)
• Comes fully assembled for plug & play operation with no tools or assembly required


Quality and Reliability


• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• 5-year premium warranty
