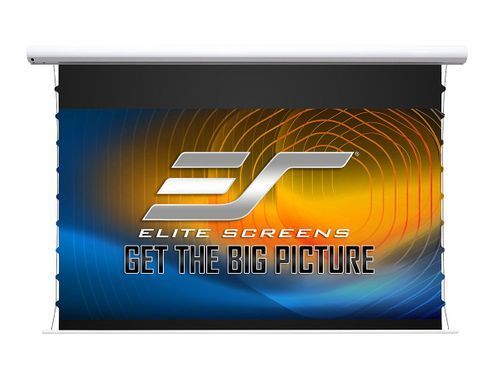

Elite Screens Starling Tab-Tension, 140" diag.,16:9 CLR 5 Fabrics - STT140XH-CLR5

This Starling Tab-Tension CLR® 5 screen features a 140 in diagonal viewing surface and viewing size of 68.6 x 122 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features CLR® 5 projection fabric

The StarBright® CLR® 5 (SBCLR® 5) features Ceiling Light Rejecting technology for bottom placed ultra-short throw front projection applications in moderate light room environments. The surface can reject (absorb) 80% of ambient light to combat the washout effect typically experienced using matte white surfaces. This allows projector presentations to achieve contrast-rich images with a wide viewing angle without compromising picture performance and delivering exceptional imagery.

Not Compatible With Short or Standard Throw Projectors

Recommended for: CLR 5 (Ceiling Light Rejection) projector screens are highly recommended for Ultra-Short Throw (UST) laser projectors and brightly lit rooms. They feature special optical structures that absorb up to 80% of overhead ambient light, allowing for deep blacks and vibrant colors without having to close your blinds.

• StarBright® CLR® 5 (SBCLR 5} Ceiling Light Rejecting material absorbs 80% of overhead light
• Gain: 0.8
• Viewing Angle: 170° (65° L/R)
• Designed for bottom placed ultra-short throw projectors
• Absorbs up to 80% of overhead light
• Black backing eliminates light penetration while enhancing image brightness to prevent picture degradation
• Wide viewing angle provides a clear, bright, and uniform picture from any angle.
• GreenGuard® / GreenGuard® Gold Certified UL 2818 for Safety Indoor Emissions free
• 4K/8K Ultra HD, active 3D compatible

Starling Tab-Tension CLR® 5

The Starling Tab-Tension CLR® 5Series features an ultra-short throw front projection Ceiling Light Rejecting® (CLR®) surface in a sleek motorized modern design. Its tab-tension system ensures a flat and taut projection surface that produces exceptional, ripple-free images. The StarBright CLR® 5 (SBCLR® 5) absorbs overhead light to prevent the washout out effect commonly experienced with conventional matte white materials.

It includes a pair of wall brackets for a flush wall/ceiling installation along with a pair of eye-bolt screws that attach to the top of the case for a suspended ceiling installation.

The SWIFT-RC1™ control system includes wired/wireless 12-volt trigger capability, IR/RF remote controls, and a detachable wall box controller switch for up/down/stop operation.

• Flush wall/ceiling mounts permit wood stud installation and allow screen to slide horizontally for proper centering
• Tab-tension design helps maintain a flat, taut, and ripple-free projection surface
• Project from a short distance without shadowing the picture
• Curved aluminum white case is moisture resistant
• Plug & Play design with built-in low voltage control system, no hardwire installation required

• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller
• Wireless 12v trigger capability via Radio Frequency remote control


Quality and Reliability
• Standard 2-year premium warranty
• 3-year ENR-G warranty for Education, Non-profit, Religious, and Government organizations

• Product Data Sheet
