Elite Screens Designer Cut, 135", 16:9, WraithVeil® Dual fabric - RM-135H-DUAL

This Designer Cut screen features a 135 in diagonal viewing surface and viewing size of 70 x 124 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features WraithVeil® Dual projection fabric

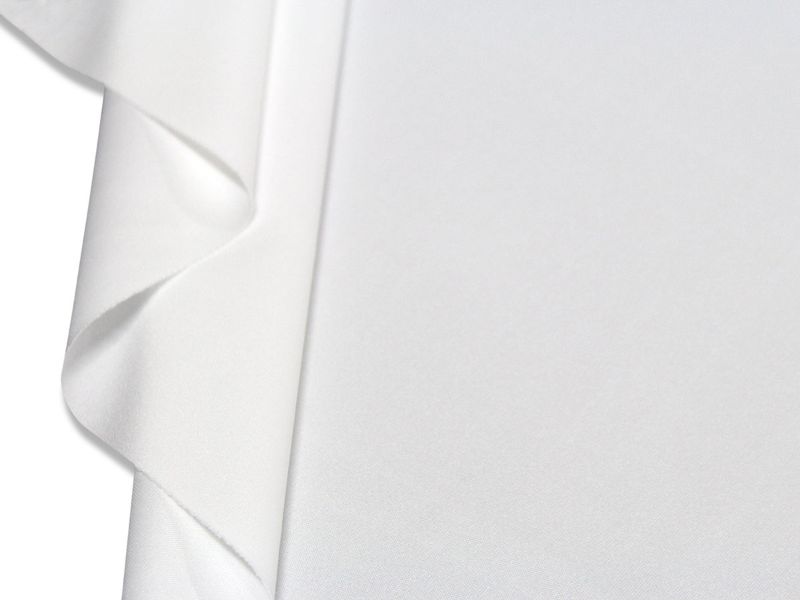

The WraithVeil® Dual is a transparent 2-directional flexible vinyl projection screen material. It is designed to accommodate either front or rear projection. This versatile material eliminates the need to swap out the projection material to accommodate a front or rear projector array. It offers a 150° wide viewing angle and color balance for a variety of presentations. The WraithVeil® Dual performs best under controlled room lighting, but is capable of providing excellent performance with mild levels of ambient light when using a high lumens standard or ultra/short-throw projector. Its pliable tension properties ensure a uniformly taut projection surface for exceptional projected imagery.

Best for environments: Rear or Front applications for Rental & Staging, ProAV, DJ events in a light controlled environment.

• Gain: 0.8
• Viewing Angle: 150° (75°LR)
• 2-Directional Front/Rear Projection
• Transparent material allows viewers to see picture simultaneously from front or rear
• Provides exceptional color balance and high resolution
• Broad viewing cone for edge blending applications
• Compatible with ultra, short and standard throw projectors
• 4K Ultra HD, HDR, and Active 3D Ready
• Surface cleaned with mild soap, water and a soft cloth
• Flexible PVC allows proper tension for uniform flatness
• Mildew Resistant

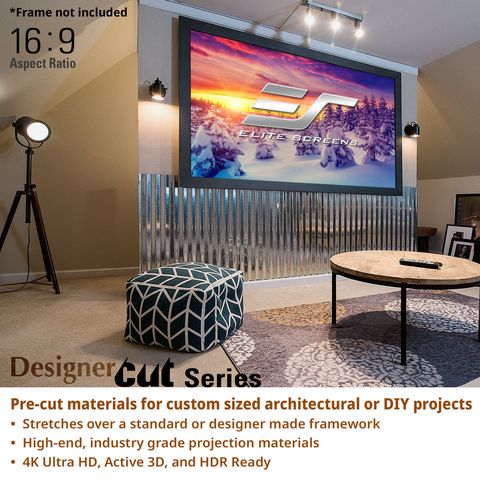

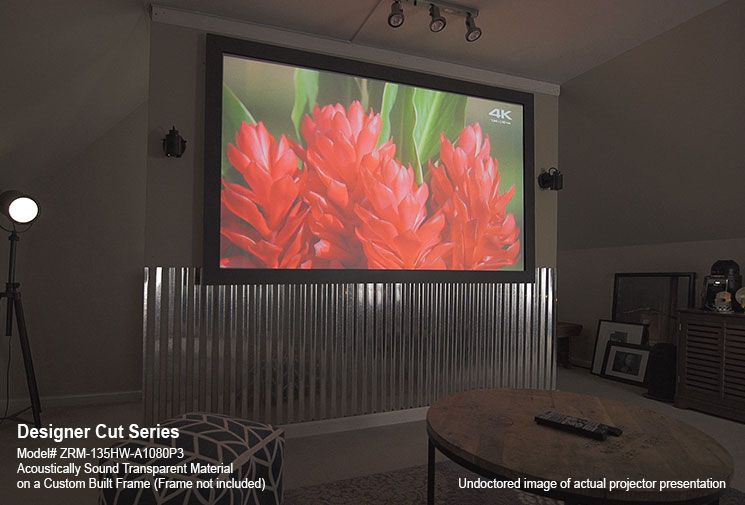

Designer Cut

The Designer Cut Series is Elite Screens selection of pre-cut projection screen material swatches. The swatches are prepared for use in custom solutions and other improvised installations according to the integrator’s needs.

Screen Material Options
• A4K, ultra-fine knitted smooth screen surface that offers excellent audio transparency
• CineWhite® tensioned matte white, 1.1 gain – (For light-controlled room home cinema 1080P/4K projectors)
• CineWhite® UHD-B ISF certified matte white, 1.3 gain – (For light-controlled room home cinema 1080P/4K projectors)
• CineWhite® A8K ISF certified multi-layer knitted weave material, acoustically transparent, 1.1 gain – (For light-controlled room home cinema 4K/8K projectors)
• CLR® 2 Ceiling light rejecting ISF certified material, 0.8 gain, absorbs up to 90% of overhead lighting (For ambient lit or light-controlled rooms)
• Retro-Reflective Material for Ultra-Short and Short Throw Projectors ONLY. (NOT Compatible with Standard Throw Projectors)
• CineGrey, High Contrast Gray Material, 1.0 gain – For improved contrast ratio and black levels
• CineGrey 5D®, ambient light rejecting ISF certified, 1.5 gain (For light-controlled room or ambient light room home cinema 1080P/4K projectors)
• Angular Reflective Material for Standard “Long” Throw Projectors. ( NOT Compatible with Ultra/Short Throw Projectors)
• CineGrey 3D®, ambient light rejecting ISF certified, 1.2 gain (For light-controlled room or ambient light room home cinema 1080P/4K projectors)
• Angular Reflective Material for Standard “Long” Throw Projectors. ( NOT Compatible with Ultra/Short Throw Projectors)
• CineGrey 4D AT, Acoustically Transparent front projection Ceiling Ambient Light Rejecting (ALR/CLR®) material, ISF certified,1.1 gain.
• Angular Reflective Material for Standard “Long” Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
• ImpactWhite® A4K, single layer ultra-fine projection fabric designed to withstand impact from sport simulations. (Recommended for short throw projectors)
• ImpactWhite® 1145 ISF certified multi-layer knitted material to withstand impact from sport simulations. (Recommended for short throw projectors)
• ImpactWhite® 360 ISF certified single-layer tightly woven screen fabric designed to endure golf ball impact and longevity. (Recommended for short throw projectors)
• WraithVeil® Dual, transparent 2-directional material, 0.8 Gain – (For light-controlled room home cinema 1080P/4K projectors)

• Pre-cut materials for custom sized architectural or DIY projects
• Rolled material helps maintain a flat and wrinkle-free viewing surface

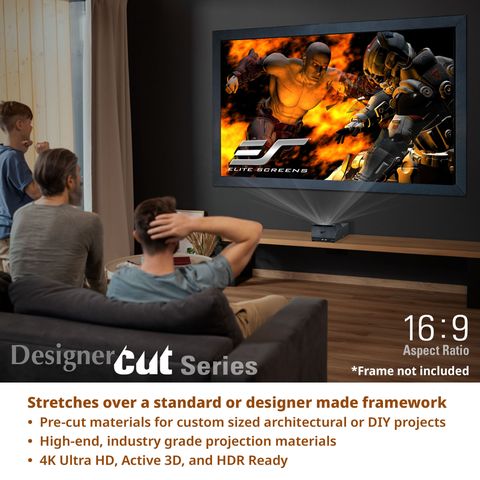

• Stretches over a standard or designer made framework
• High-end, industry grade projection materials
• 4K Ultra HD, Active 3D, and HDR Ready

• 2-Year / 3-Year ENR-G Manufacturer's Warranty by Elite Screens, an ISO9001 manufacturer since 2004
• Lifetime Tech Support by Elite Screens Professional Service Team through Email or Web Chat.

• Product Data Sheet
