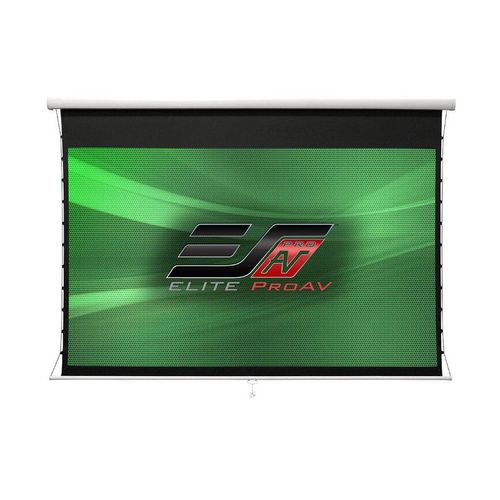

Elite Screens Manual Tab-Tension Pro, 113", 16:10, CineWhite® UHD-B 1.3 Gain fabric - MT113NWX2

This Manual Tab-Tension Pro screen features a 113 in diagonal viewing surface and viewing size of 59.8 x 95.7 in. with a White Case. 16:10 aspect ratio is idea for business presentation content, and is a good compromise for scenarios where many aspect ratios will be used Features CineWhite® UHD-B projection fabric

The CineWhite® UHD-B (Tensioned Matte White) is a 1.3 gain flexible front projection screen material that is certified by the world-renowned Imaging Science Foundation for achieving accurate color reproduction and image fidelity. It has wide diffusion uniformity that allows equal brightness levels over a 180° viewing angle. The flexible PVC material construction has the needed pliability to maximize flatness in a “roll-up” projection surface. The versatile properties of this material make it a natural fit with either standard or ultra/short-throw projectors. The material is also suited for either residential or commercial applications.

Not Compatible With Short or Standard Throw Projectors

Best for Environments: Versatile for multiple applications in a light controlled room

• Gain: 1.3
• Viewing Angle: 180° (90°LR)
• Wide diffusion uniformity
• Black backing
• Surface can be cleaned with hand or soft soap diluted in warm water using a fiber cloth
• Mildew Resistant
• 4K/8K Ultra HD ready
• ISF Certified

Manual Tab-Tension Pro

The Manual Tab-Tension Pro by Elite ProAV® is a tab-tensioned manual pull-down projection screen. It includes features such as a hands-free retraction mechanism that allows the screen to return into its casing unassisted. It has a tab-tension system to keep the screen material flat and taut uniformly. It is offered in a matte white front projection surface for light controlled environments that is compatible with ultra/short/standard-throw projectors. A ceiling/ambient light rejecting option is also available for rooms with minimal light control.

The aluminum housing for the Manual Tab-Tension Pro projection screen is moisture resistant. The screen comes fully assembled and ready to mount. Floating wall brackets allow the screen to slide into perfect alignment with wood studs for a perfectly centered installation. Eyebolts are included to facilitate suspended ceiling installations.

• CineWhite® UHD-B (For light controlled environments)
• Tensioned Matte White 1.3 Gain front projection material
• Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
• Compatible with Ultra/Short/Standard “long” throw Projectors
• Black backing eliminates light penetration which prevents picture degradation
• Ceiling/Ambient Light Rejecting material option available
• 4K Ultra HD, Active 3D, and HDR Ready
• ISF Certified for Accurate Color Reproduction
• Black masking borders enhance picture contrast and absorb projector overshoot
• Available in diagonal sizes 113", and 123" in 16:10 aspect ratio
• CineWhite® P (for light controlled environments)
• Gain: 0.9
• Viewing Angle: 180°
• Black backing layer enhances picture contrast
• Superior performance while maintaining true color purity with excellent contrast to display precise presentations.
• ISF Certified for accurate color reproduction – An industry standard for high-fidelity video display systems.
• Wide viewing angle provides a clear, bright, and uniform picture from any angle.
• Compatible with 4K Ultra HD high resolution Ultra-Short, Short-Throw, and Standard Throw Projectors
• Available in 110” and 125” in 16:9 and 100” in 16:10 aspect ratio


Design and Installation

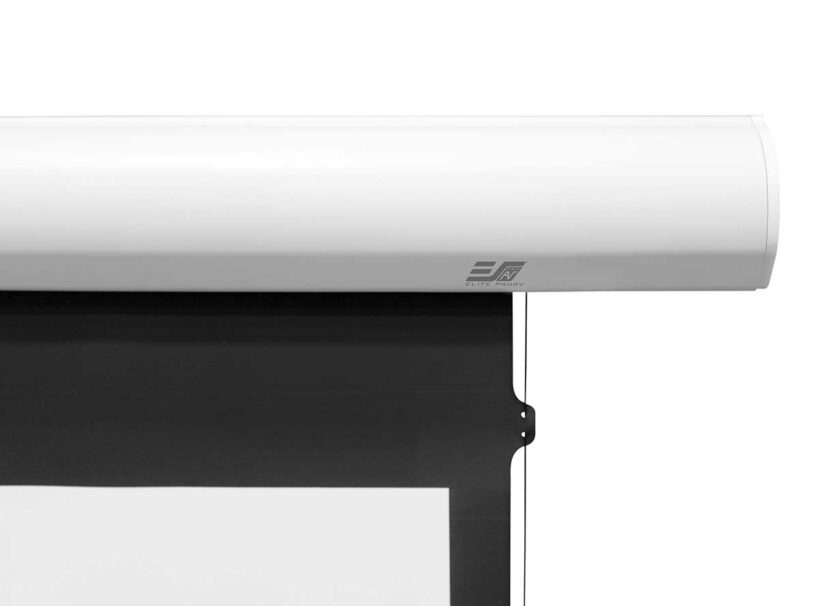

• Premium grade white-enameled aluminum housing
• Tab-tension design helps maintain a flat and taut projection surface
• Floating brackets permit a sliding flush wall installation

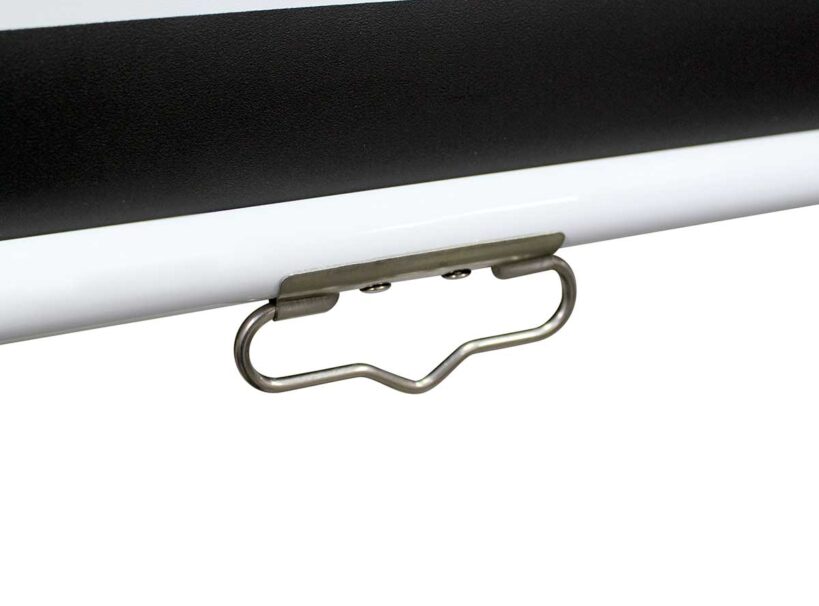

• Includes eye-bolts for a suspended ceiling installation
• Auto-locking mechanism provides variable height settings
• Built-in SRM (Slow Retract Mechanism) function for hands-free and safe retraction into housing – MT100NWX3, MT110HE12 and M125HE12
• Optional 6” and 12” Extension L brackets – Sold Separately
Quality and Reliability
• 5-Year Premium Warranty by Elite Screens, an ISO9001 manufacturer since 2004
• Lifetime Tech Support by Elite ProAV’s Professional Service Team through Email, Web Chat or Toll-Free Phone Call

• Product Data Sheet
