Elite Screens Evanesce Tab-Tension CineGrey 5D®, 115", 16:9, CineGrey 5D® fabric - ITE115H25D-E24

This Evanesce Tab-Tension CineGrey 5D® screen features a 103 in diagonal viewing surface and viewing size of 50.7 x 90 in. 16:9 aspect ratio is ideal for movies and HDTV content. Features CineGrey 5D® projection fabric

The CineGrey 5D® is an angular reflective front projection material designed to reject ambient light while maintaining superb picture quality. The CineGrey 5D® is the perfect solution for rooms that have little or no control over incidental light. This means that it’s an ideal fit for family rooms as well as lecture halls, boardrooms, sports bars, training facilities, and other business environments. In addition, the CineGrey 5D® increases projector brightness 1.5 times the amount. This is perfect for low lumens ouput projectors! The CineGrey 5D® is superior to traditional white or gray materials in its ability to maintain a sharp, bright image regardless of ambient light. The angular reflective material incorporates a diffusion layer over a highl reflective surface. This causes direct light from the projector to reflect squarely into the viewer’s field of vision while the outer contrast layer enhances image quality while reflecting indirect ambient light.

Not Compatible With Ultra-short/Short >Throw or Triple Laser Projectors

Best for environments:High ambient light control rooms and dark rooms.

• CineGrey 5D® 1.5 Gain with 80º (L&R 40º) Viewing angle
• ISF Certified for accurate color points, color temperature and dynamic range
• GREENGUARD® / GREENGUARD® Gold Certified UL 2818 for Safety Indoor Emissions free
• High fidelity gray surface produces superb clarity and sharp images
• Screen surface can be cleaned with a microfiber cloth
• Angular Reflective CLR®/ALR Front Projection Material for Standard “Long” Throw Projectors.
  • (NOT Compatible with Ultra/Short Throw Projectors)
• Mildew Resistant
• Active 3D, 4K Ultra HD, and HDR Ready
• Flame Retardant: Complies with NFPA 701 Standards
• Minimum Lens Throw 1.5

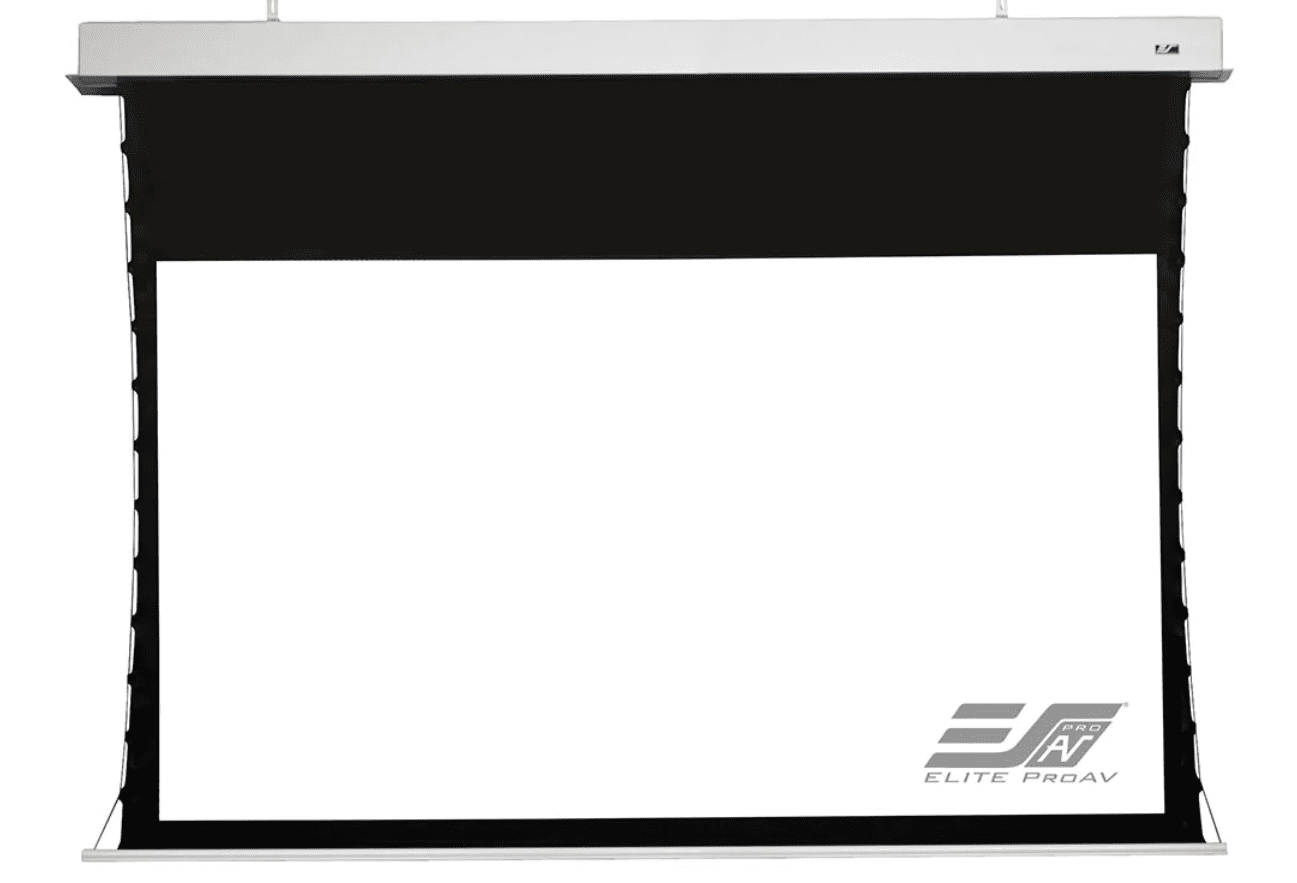

Evanesce Tab-Tension CineGrey 5D®

The Evanesce Tab-Tension Cinegrey 5D® is an electric projector screen designed for integrated “in-ceiling” applications. It utilizes our CineGrey 5D® ambient and ceiling light rejecting (ALR/CLR®) material that is ISF certified for superb color saturation, contrast and black/white dynamic range that attains superior picture performance either in a dark or bright room lighting. The tab-tensioned feature provides uniform flatness over the entire projection surface. A full control kit including IR/RF remotes, 3-way wall switch, and a 5-12-volt trigger that synchronizes the screen’s drop and rise with the projector’s power cycle. This product is Plenum Rated (UL 2043 Compliant): Making it properly certified for installation in air-handling spaces. The material is also GREENGUARD® /Gold (UL 2818) certified for safe indoor air quality.

• CineGrey 5D® 1.5 Gain Ceiling/Ambient Light Rejecting (CLR®/ALR) front projection material
• Angular Reflective Material for Standard “Long” Throw Projectors. (NOT Compatible with Ultra/Short Throw Projectors)
• Multi-layer matrix uses reflective and absorbent micro-particles eliminate up to 75% of ambient light
• High-contrast diffusion layers (Enhance black level dynamic range and color saturation)
• Angular reflectivity negates light scatter artifacts and is ideal for residential or commercial applications
• ISF Certified for accurate Color Reproduction
• 4K/8K Ultra HD and HDR Ready
• Black masking borders absorb projector overshoot while enhancing image contrast
• Available in the following diagonal sizes and aspect ratios

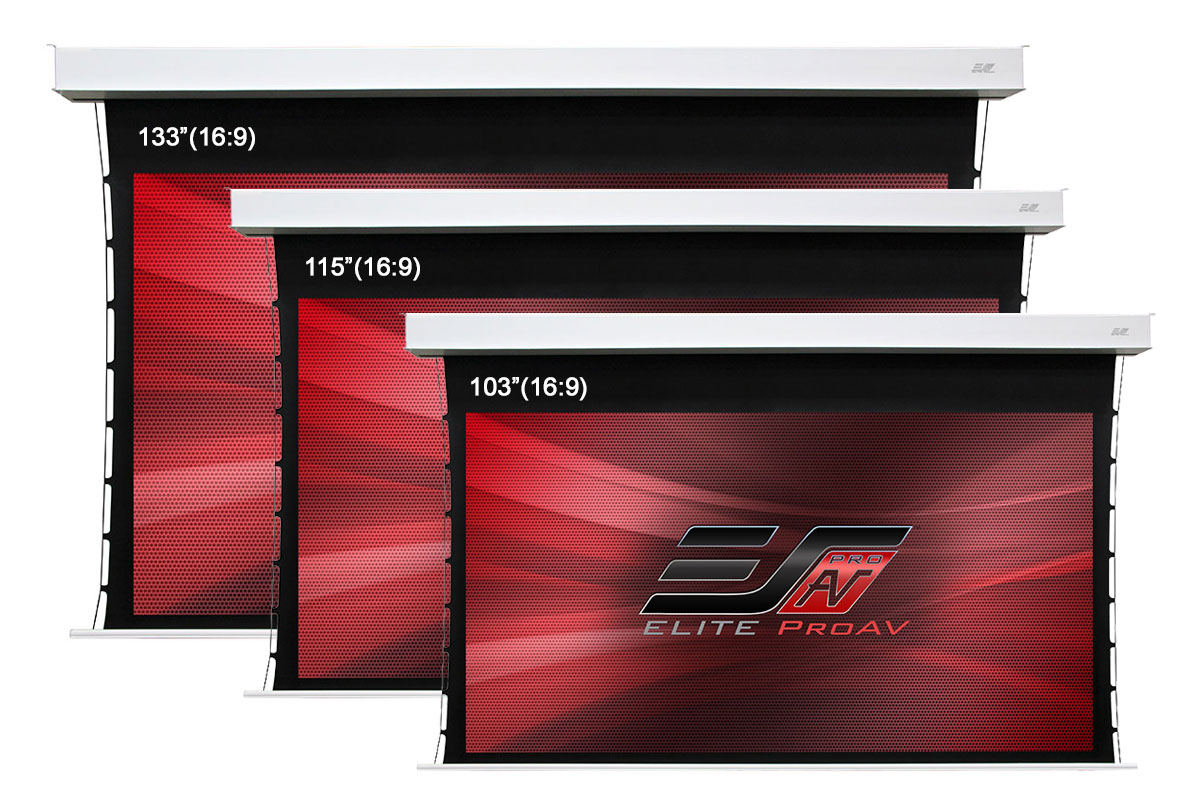

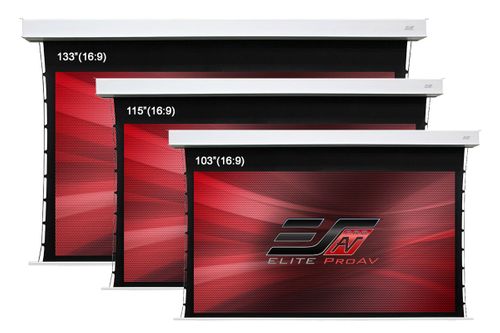

• 103", 115", 133" in 16:9 HDTV aspect ratio

• Disappearing “in-ceiling” design for multi-purpose media room applications
• Below or Above ceiling access accommodates installations from within the room or ceiling space
• Tab-tension designs maintains uniform screen flatness
• White enameled aluminum housing is durable and moisture resistant for structural integration
• Includes handheld Infrared (IR) and Radio Frequency (RF) remote controls, and a wall box controller for manual on-wall operation.
• User-friendly programmable vertical drop position for easy installation
• Wall box controller is detachable for a clean look while maintaining RF & IR functionality
• Built-in selectable channels allow one RF remote programming to control multiple screens and prevent interference
• 12v trigger feature allows the screen’s UP/DOWN operation to synchronize with the projector’s power cycle
• Wired 12v trigger capability via wall box controller
• Wireless 12v trigger capability via Radio Frequency remote control


Quality and Reliability
• Fast-acting yet quiet tubular motor with superior weight tolerance and longer operational lifespan
• Plenum Rated or UL 2043 Compliant for installation in air handling spaces
• GREENGUARD® and GREENGUARD® Gold (UL 2818) Certified for safe air quality emissions – CineGrey 5D®
• Flame Retardant: Complies with NFPA 701 Standards – CineGrey 5D®
• 5-year limited manufacturer’s warranty

• Product Data Sheet
